Antenna - AM/FM: Notes

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

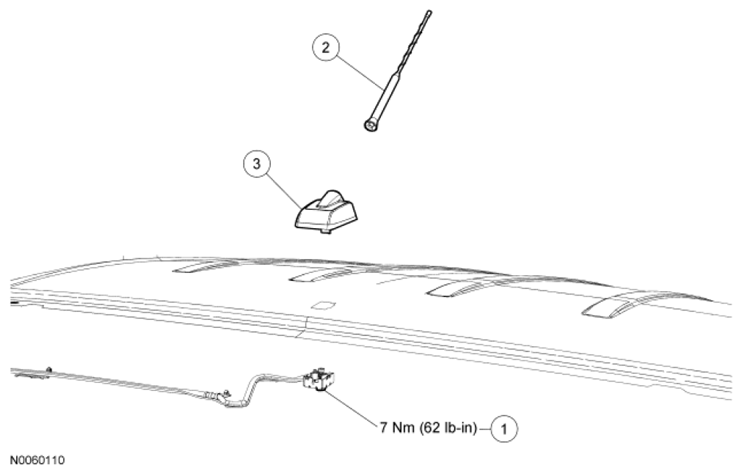

Fig 1: AM/FM Antenna With Mast And Base Bolt With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	AM/FM antenna base bolt (part of 18812)
2	18813	AM/FM antenna mast
3	18936	AM/FM antenna
