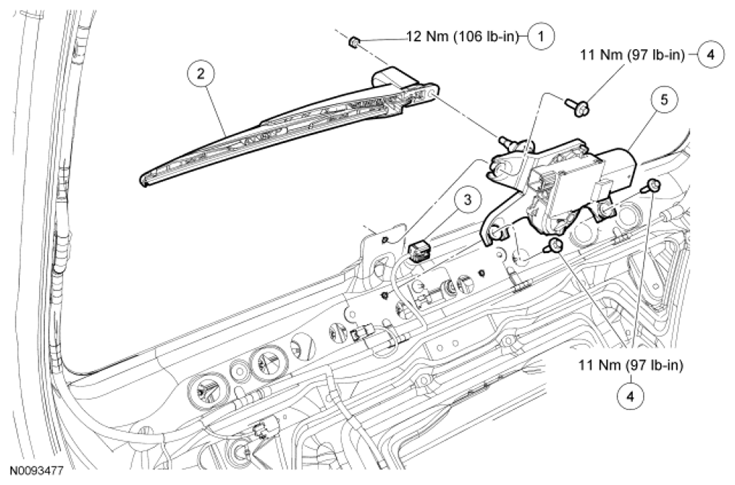

Wiper and Washer System - Exploded View, Rear
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W708312 | Rear wiper pivot arm nut |
| 2 | 17526 | Rear wiper pivot arm |
| 3 | - | Rear wiper motor electrical connector (part of 14290) |
| 4 | N807658 | Rear wiper motor screws (3 required) |
| 5 | 17D400 | Rear wiper motor |
- For additional information, refer to the appropriate procedure(s).
