Removal and Installation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Remove the RH front fender splash shield. For additional information, refer to FRONT END BODY PANELS .

NOTE: When replacing the washer pump, be careful not to damage the rubber grommet.

NOTE: To prevent spilling windshield washer fluid, drain the washer reservoir before washer pump removal.

Remove the washer pump.
1. Disconnect the electrical connector.
2. Disconnect the hoses.
3. Remove the washer pump.

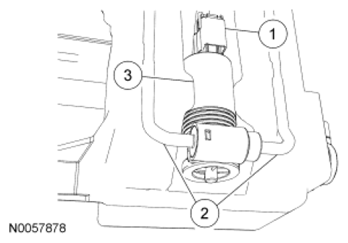

  Fig 1: Identifying Washer Pump And Hoses
  Courtesy of FORD MOTOR CO.

NOTE: Do not operate the washer pump prior to filling the washer reservoir. Failure to follow these instructions may result in premature pump failure.

To install, reverse the removal procedure.
- Fill the washer reservoir with windshield washer fluid.
