Rear Bumper With Trailer Hitch
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

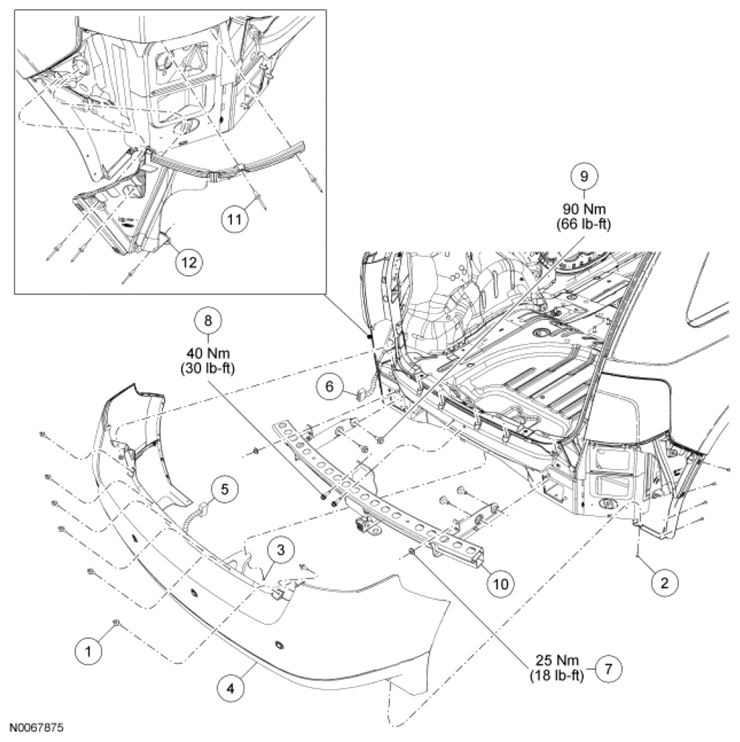

DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W713202 | Rear bumper cover scrivet (Edge) (8 required) |
| 1 | W713202 | Rear bumper cover scrivet (MKX) (10 required) |
| 2 | W711656 | Splash shield screw (10 required) |
| 3 | W711656 | Rear bumper cover body brace screw |
| 4 | 17K835 | Rear bumper cover |
| 5 | - | Wiring harness assembly |
| 6 | - | Wiring harness assembly |
| 7 | N804620 | Rear bumper mounting nut (2 required) |
| 8 | W712171 | Rear bumper mounting bolt (2 required) |
| 9 | W702256 | Rear bumper mounting bolt (4 required) |
| 10 | 17D826 | Rear bumper |
| 11 | W705376 | Rear bumper cover mounting bracket rivet (5 required) |
| 12 | 17D980 | Rear bumper cover mounting bracket |
- For additional information, refer to the procedures in this article.
