Removal and Installation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Position the steering wheel in the straight-ahead position and turn the ignition switch to the OFF position.
- Remove the key.
Remove the driver air bag module. For additional information, refer to DRIVER AIR BAG MODULE .

NOTE: Mark the steering wheel and column shaft for reference during installation.

Remove the steering wheel nut.
- To install, tighten to 35 Nm (26 lb-ft).
Disconnect the steering wheel switches electrical connector.

NOTE: Do not remove the steering wheel by hitting the shaft with a hammer. Damage to the column may occur.

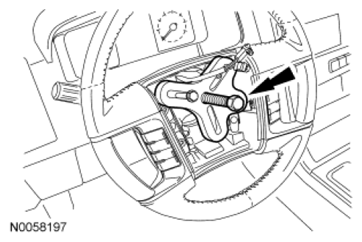

Fig 1: Identifying Suitable Puller

Courtesy of FORD MOTOR CO.

Using a suitable puller, remove the steering wheel.
Tape the clockspring center rotor to the outer housing to keep it from rotating.

Fig 2: Locating Outer Housing Center Rotor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Align the steering wheel using the reference mark.
