Removal and Installation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering gear. For additional information, refer to STEERING GEAR .

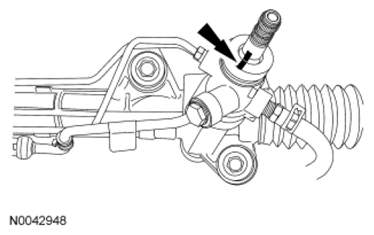

Mark the pinion shaft and the steering gear housing for correct reference during installation.

Fig 1: Aligning Mark Pinion Shaft And Steering Gear Housing
Courtesy of FORD MOTOR CO.

NOTE: Position the steering gear in a soft-jaw vise or damage to the steering gear may occur.

Loosen the tie-rod jam nut.
- To install, tighten to 90 Nm (66 lb-ft).
Remove the outer tie-rod end and the tie-rod jam nut.
- To install, tighten to 48 Nm (35 lb-ft).

NOTE: It is necessary to remove both bellows boots when removing the RH inner tie rod.

Remove the 4 bellows clamps and the 2 steering gear bellows boots.
Using a suitable wrench, hold the piston shaft.
Using a suitable wrench, remove the inner tie rod.
- To install, tighten to 103 Nm (76 lb-ft).

NOTE: Using a suitable wrench, hold the piston shaft while tightening the inner tie rod.

To install, reverse the removal procedure.
- Thoroughly clean and inspect all the parts to be reused. Install new parts as necessary.
