Power Steering Pump to Steering Gear Pressure Line: Material
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

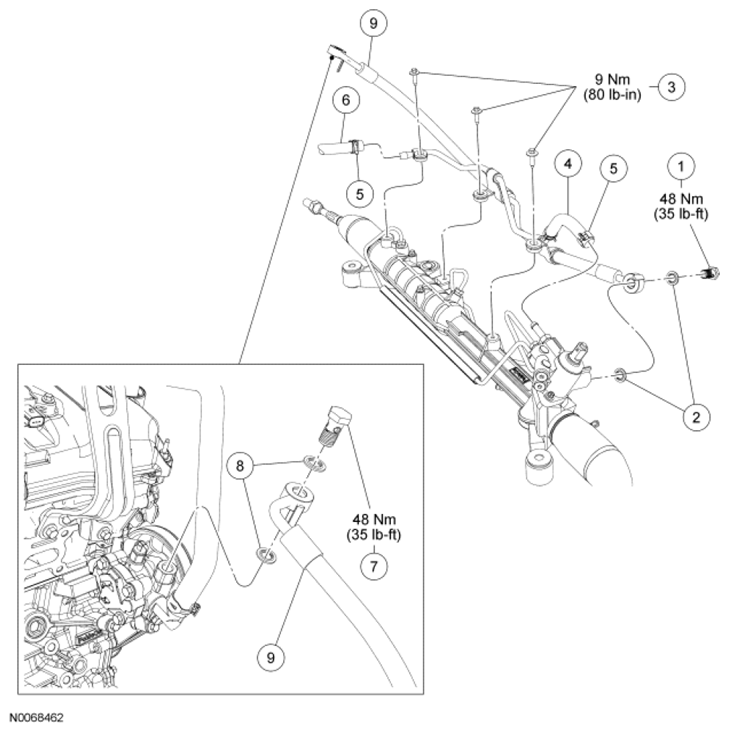

DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 3N623 | Pressure line-to-steering gear banjo bolt (also part of kit 3A719) |
| 2 | 3N626 | Pressure line-to-steering gear seals (2 required) (also part of kit 3A719) |
| 3 | W711787 | Pressure line bracket-to-steering gear bolts (3 required) (also part of kit 3A719) |
| 4 | - | Return hose (part of kit 3A719) |
| 5 | 3C750 | Clamps (also part of kit 3A719) |
| 6 | 3A713C | Return hose |
| 7 | 3N623 | Pressure line-to-power steering pump banjo bolt (also part of kit 3A719) |
| 8 | 37626 | Pressure line-to-power steering pump seals (2 required) (also part of kit 3A719) |
| 9 | 3A719 | Pressure line kit |
