Power Steering Fluid Reservoir: Material
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

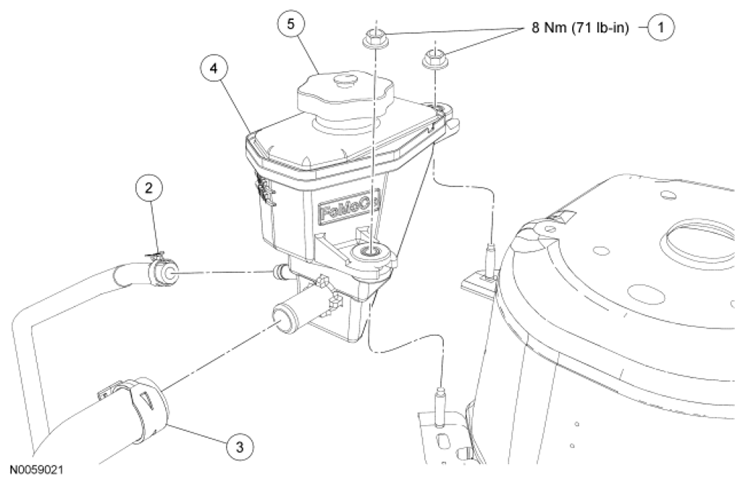

DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W707142 | Power steering fluid reservoir nuts (2 required) |
| 2 | 3A713B | Return hose |
| 3 | 3E525 | Power steering pump supply hose |
| 4 | 3R700 | Power steering fluid reservoir |
| 5 | 3A006 | Power steering fluid reservoir cap |
