Power Steering Fluid Cooler: Material
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |
DESCRIPTION CHART

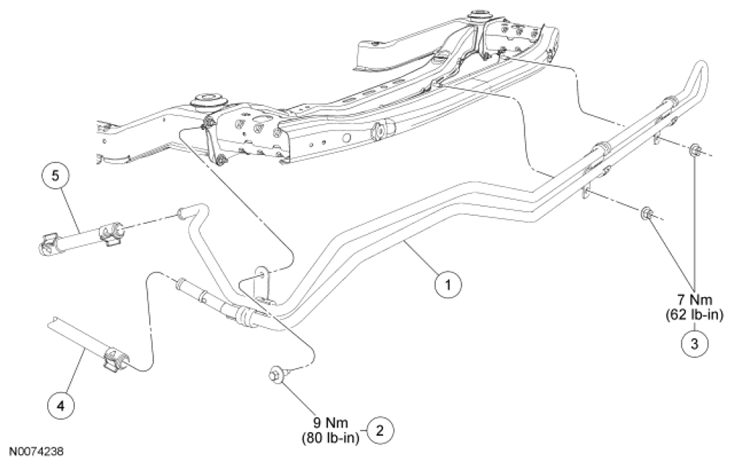

| Item | Part Number | Description |
|---|---|---|
| 1 | 3D746 | Power steering fluid cooler |
| 2 | W711788 | Power steering fluid cooler-to-subframe bolt |
| 3 | W707142 | Power steering fluid cooler nuts (2 required) |
| 4 | 3A713B | Return hose |
| 5 | 3A713C | Return hose |
