Battery Cables: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

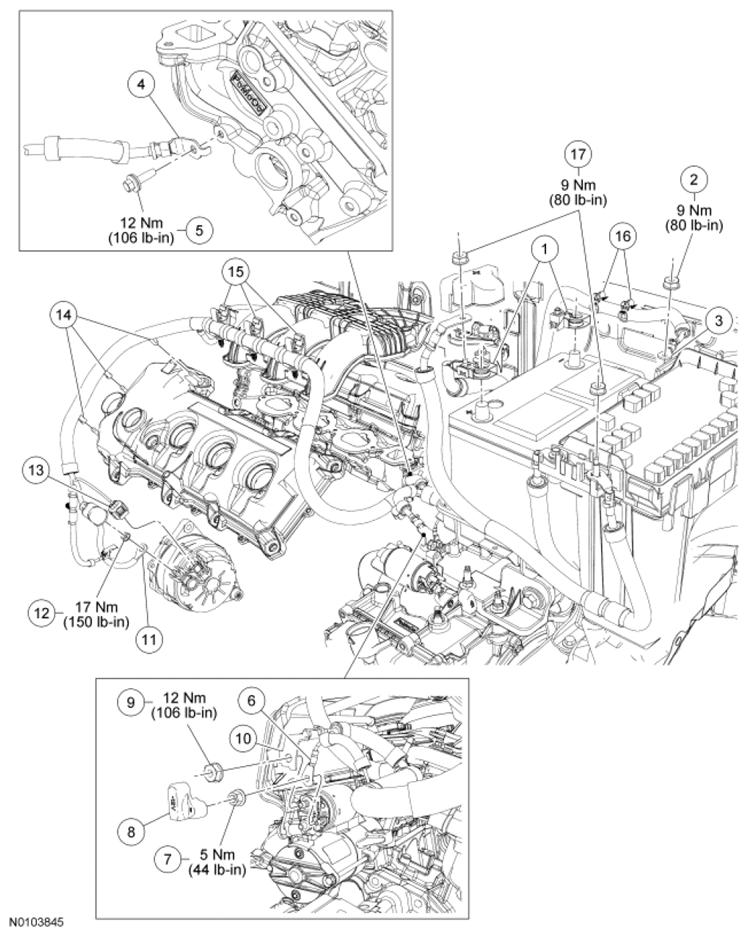

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 14B060 | Battery cables |
| 2 | W705790 | Battery cable body ground terminal nut |
| 3 | - | Battery cable body ground terminal |
| 4 | - | Battery cable engine ground terminal |
| 5 | W705661 | Battery cable engine ground terminal bolt |
| 6 | - | Battery cable starter solenoid terminal (part of 14B060) |
| 7 | W705790-S | Battery cable starter solenoid terminal nut |
| 8 | 11N087 | Starter solenoid terminal cover |
| 9 | W706414-S | Battery cable starter motor terminal nut |
| 10 | - | Battery cable starter motor terminal (part of 14B060) |
| 11 | - | Generator B+ cable terminal |
| 12 | W711953 | Generator B+ terminal nut |
| 13 | - | Generator regulator connector |
| 14 | 14A163 | Battery cable locators (3 required) (part of 14B060) |
| 15 | - | Battery cable harness locators (part of 14B060) |
| 16 | W701596-S | Battery cable locators (2 required) |
| 17 | W705790 | Battery Junction Box (BJB) cable terminal nuts |
