Instrument Cluster Finish Panel

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Edge only

NOTE: When prying on a component, a non-marring tool must be used or damage to the component may occur.

Remove the upper instrument panel center finish panel.
- Using a non-marring tool, gently pry out the upper center finish panel to disengage the clips.
- Remove the upper instrument panel center finish panel.
- Disconnect the electrical connectors.
All vehicles
Lower the steering column to the full down position.
Remove the steering column opening trim panel.
- Remove the 2 steering column opening trim panel screws.
- Disengage the steering column opening trim panel from the retainers.
- Disconnect the electrical connector and aspirator hose, if equipped.

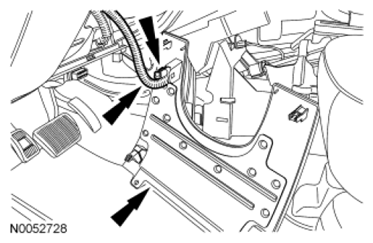

  Fig 1: Locating Electrical Connector And Aspirator Hose
  Courtesy of FORD MOTOR CO.
Remove the 2 instrument cluster finish panel screws.

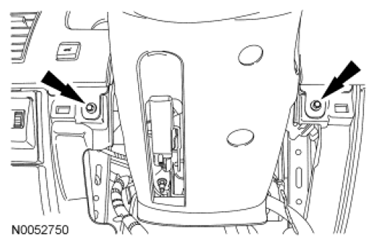

Fig 2: Locating Instrument Cluster Finish Panel Screws
Courtesy of FORD MOTOR CO.
Disengage the instrument cluster finish panel from the retaining clips and remove the panel.
- Disconnect the electrical connectors, if equipped.
To install, reverse the removal procedure.
