Seat Track: Installation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Power seat tracks

  1. Position the cushion frame-to-seat track rear brackets to the power seat track rear cross tube.
    • Make sure the locator tabs of the cushion frame-to-seat track rear brackets are aligned correctly to the cushion frame.

    Passenger seat with fold-flat backrest

  2. Make sure the fold-flat recliner cable is routed correctly between the power seat track cross tube and cushion frame.

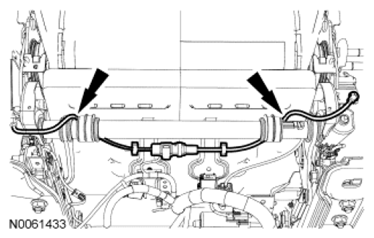

    Fig 1: Locating Fold-Flat Recliner Cable
    G06504467Courtesy of FORD MOTOR CO.

    All seat tracks

  3. Install the 4 cushion frame-to-seat track bolts.
    • Tighten to 23 Nm (17 lb-ft).

    All passenger seats

  4. For correct front passenger seat cushion wire harness routing, refer to SEAT WIRE HARNESS ROUTING - FRONT PASSENGER CUSHION .
  5. Connect the 4 OCS  weight sensor bolt electrical connectors, as marked during removal and attach any retainers holding the wire harness to the seat track.
  6. Connect the OCSM and attach any wire harness retainers to the seat track.

    Passenger seat with power seat track

  7. Position the inboard OCS  weight sensor bolt protection bracket to the seat track, install the inboard OCS  weight sensor bolt protection bracket screw and attach the wire harness to the inboard OCS  weight sensor bolt protection bracket.
    • Tighten to 2 Nm (18 lb-in).
  8. Position the outboard OCS  weight sensor bolt protection bracket to the seat track, install the 2 outboard OCS  weight sensor bolt protection bracket screws and attach the wire harness to the outboard OCS  weight sensor bolt protection bracket.
    • Tighten to 6 Nm (53 lb-in).
  9. If equipped, connect the heated seat module electrical connector and attach any retainers holding the wire harness to the seat track.
  10. If equipped, connect the DCSM  electrical connectors and attach any retainers holding the wire harness to the seat track.

    Passenger seat with manual seat track

    11. NOTE: Rear inboard OCS  weight sensor bolt protection bracket shown, others similar.
  11. Position each of the 4 OCS  weight sensor bolt protection brackets, install the 4 OCS  weight sensor bolt protection bracket screws and attach the wire harness to the OCS  weight sensor bolt protection brackets.
    • Tighten the front OCS  weight sensor bolt protection brackets to 5 Nm (44 lb-in).
    • Tighten the rear OCS  weight sensor bolt protection brackets to 2 Nm (18 lb-in).

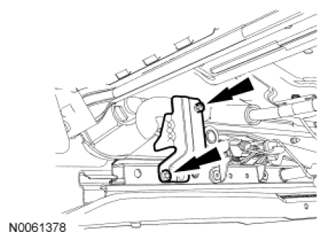

      Fig 2: Locating OCS Weight Sensor Bolts
      G06504468Courtesy of FORD MOTOR CO.

    Driver seat

  12. If equipped, connect the DSM  electrical connectors and attach any retainers holding the wire harness to the seat track.
  13. Connect the seat track position sensor and attach any retainers holding the wire harness or electrical connectors to the seat track.

    All seats

  14. For power seat, connect all the seat track motor electrical connectors and attach any retainers holding the wire harness or electrical connectors to the seat track.
  15. Connect the safety belt buckle switch electrical connector. Attach any retainers holding the wire harness or electrical connector to the seat track.
  16. Attach the seat wire harness main feed in electrical connector(s) to the seat track brackets.
  17. Install the front seat backrest. For additional information, refer to SEAT BACKREST - FRONT .

    Driver seat with memory

  18. Set the memory seat soft stops. For additional information, carry out Setting the Soft Stops in the Principles of Operation portion of Seats.
