Rear Seat Backrest, 40 Percent
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

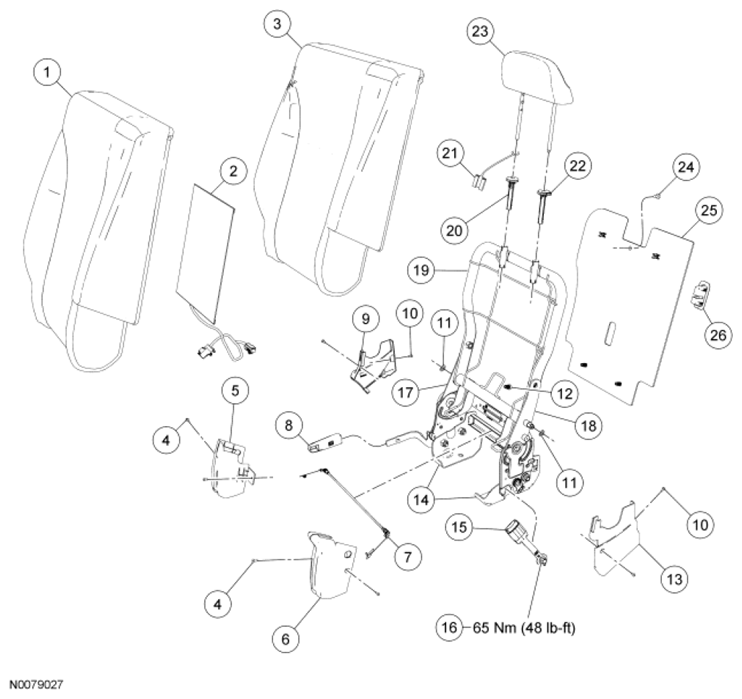

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 66600 | Backrest trim cover |
| 2 | - | Backrest heater mat (if equipped) (part of 66800) |
| 3 | 66800 | Backrest foam pad |
| 4 | - | Screws (4 required) |
| 5 | 61348 | Outboard upper side shield |
| 6 | 61348 | Inboard upper side shield |
| 7 | 601L60 | Recliner cable |
| 8 | 62418 | Recliner handle cover |
| 9 | 61348 | Outboard lower side shield |
| 10 | - | Screws (4 required) |
| 11 | - | Wave washers (2 required) |
| 12 | - | Pin-type retainer |
| 13 | 61349 | Inboard lower side shield |
| 14 | - | Anchor brackets (part of backrest assembly 613A38) |
| 15 | 60044 | Safety belt buckle |
| 16 | - | Safety belt buckle bolt (part of 60044) |
| 17 | - | Outboard recliner (part of backrest assembly 613A38) |
| 18 | - | Inboard recliner (part of backrest assembly 613A38) |
| 19 | - | Backrest frame (part of backrest assembly 613A38) |
| 20 | 610A16 | Head restraint guide (slave) |
| 21 | - | Safety belt comfort guide |
| 22 | 610A16 | Head restraint guide (master) |
| 23 | 611A08 | Head restraint |
| 24 | - | Pin-type retainer |
| 25 | 60508 | Back panel |
| 26 | 666L76 | Child safety seat tether anchor bezel |
