Passenger Power Seat Track
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
To install a new Occupant Classification System Module (OCSM) or an Occupant Classification Sensor (OCS) weight sensor bolt, refer to the appropriate procedure in
REMOVAL AND INSTALLATION
.

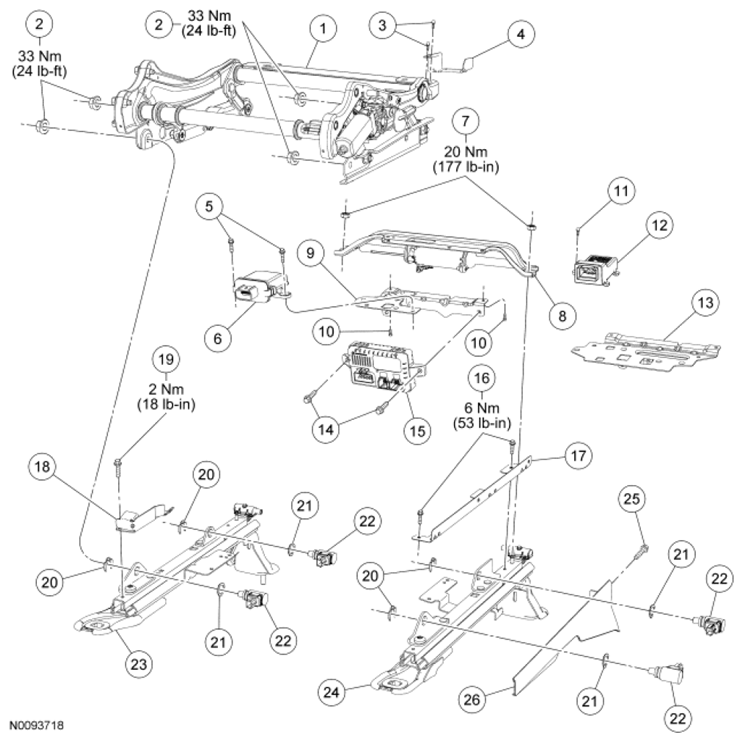

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Power seat track adjuster assembly (part of 61710) |
| 2 | 63100 | Occupant Classification Sensor (OCS) weight sensor bolt nuts (4 required) |
| 3 | 62294 | Cushion side shield bracket screws |
| 4 | 14A301 | Cushion side shield bracket |
| 5 | 62294 | Occupant Classification System Module (OCSM) retainers |
| 6 | 14B422 | OCSM |
| 7 | - | Seat track front cross brace nuts (part of 61710) |
| 8 | - | Seat track front cross brace (part of 61710) |
| 9 | 14A301 | Bracket (with Dual Climate Controlled Seat Module (DCSM)) (if equipped) |
| 10 | 62294 | Bracket screws |
| 11 | - | Heated seat module screw (if equipped) |
| 12 | 14C724 | Heated seat module (if equipped) |
| 13 | 14A301 | Bracket (with heated seat module) (if equipped) |
| 14 | 62294 | DCSM retainers (if equipped) |
| 15 | 14C724 | DCSM (if equipped) |
| 16 | 62294 | Outboard OCS weight sensor bolt protection bracket screws |
| 17 | - | Outboard OCS weight sensor bolt protection bracket |
| 18 | - | Inboard OCS weight sensor bolt protection bracket |
| 19 | 62294 | Inboard OCS weight sensor bolt protection bracket screw |
| 20 | 12655 | OCS weight sensor bolt retaining clips (4 required) |
| 21 | 12656 | OCS weight sensor bolt spring washers (4 required) |
| 22 | 14B422 | OCS weight sensor bolts (4 required) (part of 61710) |
| 23 | - | Inboard seat track rail (part of 61710) |
| 24 | - | Outboard seat track rail (part of 61710) |
| 25 | 62294 | Seat track cover retainer |
| 26 | 62186 | Seat track cover |
- For additional information, refer to the procedures.
