Driver Seat Cushion With Manual Seat Track
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A new heater mat will come assembled on a new foam pad.

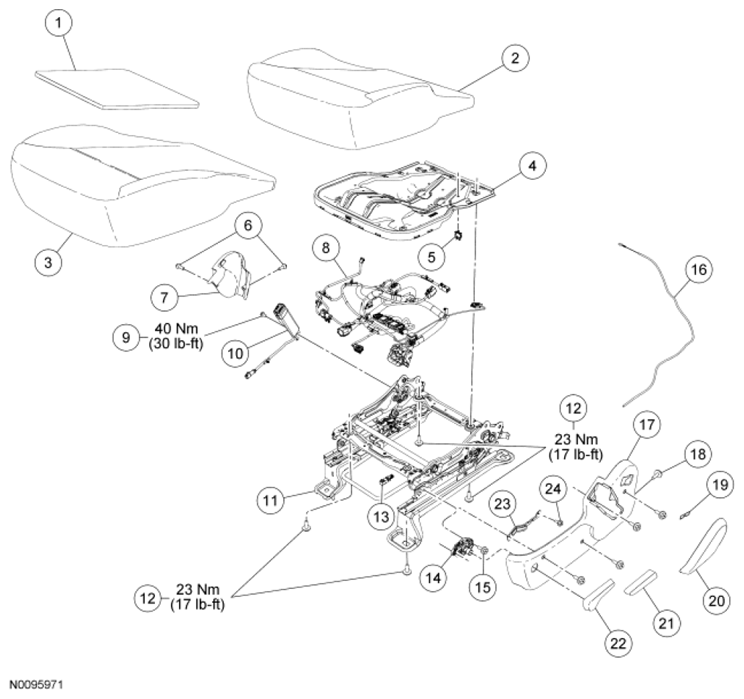

Fig 1: Exploded View Of Seat - Driver Seat Cushion With Manual Seat Track With Torque Specifications
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Cushion heater mat (part of 632A23) (if equipped) |
| 2 | 62901 | Cushion trim cover |
| 3 | 632A23 | Cushion foam pad |
| 4 | 63100 | Cushion frame |
| 5 | 14A163 | Wire clip |
| 6 | 62294 | Recliner side shield screws |
| 7 | 62187 | Recliner side shield |
| 8 | 14A699 | Driver seat wire harness |
| 9 | - | Safety belt buckle-to-seat track bolt (part of 61203) (manual driver seat track only) |
| 10 | 61203 | Safety belt buckle |
| 11 | 61711 | Manual seat track assembly |
| 12 | W506021 | Seat track-to-cushion frame bolts (4 required) |
| 13 | 14B416 | Seat track position sensor |
| 14 | 610C01 | Manual lumbar adjuster (if equipped) |
| 15 | 62294 | Manual lumbar adjuster-to-seat track screw (if equipped) |
| 16 | - | Manual lumbar cable (if equipped) (part of 65500) |
| 17 | 62187 | Cushion side shield |
| 18 | 62294 | Cushion side shield retainer (4 required) |
| 19 | - | Manual recliner handle spring clip (part of 61737) |
| 20 | 61737 | Manual recliner handle |
| 21 | 61737 | Manual height adjust handle (if equipped) |
| 22 | 617B70 | Manual lumbar adjust handle (if equipped) |
| 23 | 14A301 | Shield bracket |
| 24 | 62294 | Shield bracket screw |
