Outboard of Cushion Frame and Power Seat Track From Upright
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

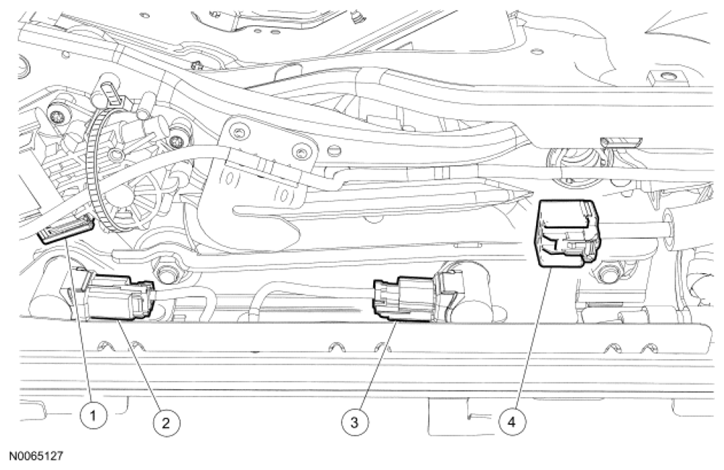

ITEM DESCRIPTION CHART
| Item | Description |
|---|---|
| 1 | Rear height motor electrical connector |
| 2 | Rear outboard Occupant Classification Sensor (OCS) weight sensor bolt electrical connector |
| 3 | Front outboard OCS weight sensor bolt electrical connector |
| 4 | Seat control switch electrical connector |
- Make sure the passenger seat cushion wire harness is correctly routed and attached.
