Inboard Side of Cushion Frame and Power Seat Track From Underneath

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

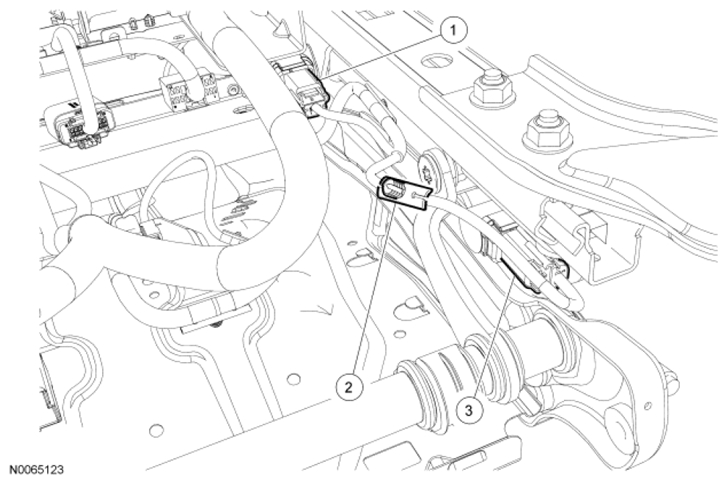

Fig 1: Identifying Inboard Side Of Cushion Frame And Power Seat Track From Underneath
G06504427Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Description
1 Front inboard Occupant Classification Sensor (OCS) weight sensor bolt electrical connector
2 Attaches to inboard OCS  weight sensor bolt protection bracket
3 Rear inboard OCS  weight sensor bolt electrical connector
