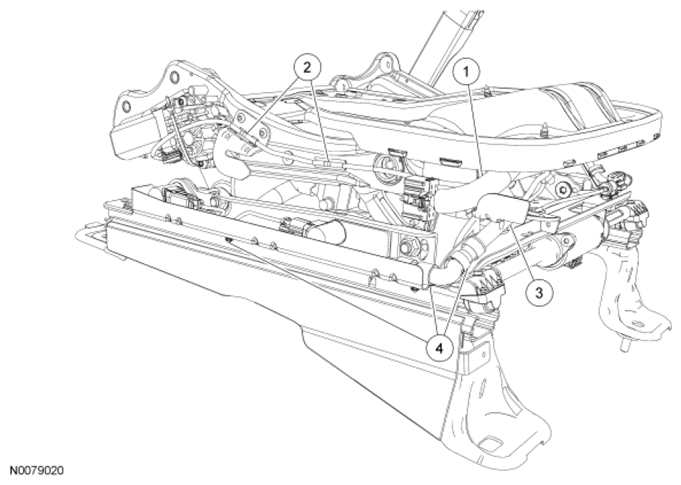

Front and Outboard Side of Cushion Frame and Power Seat Track From Upright
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION CHART
| Item | Description |
|---|---|
| 1 | Seat control switch and rear height motor takeout must be routed on top of the bracket |
| 2 | Rear height motor takeout attachment points |
| 3 | Outboard Occupant Classification Sensor (OCS) weight sensor bolt takeout must be routed under the bracket |
| 4 | Outboard OCS weight sensor bolt takeout attachment points |
