Front Inboard Side of Cushion Frame and Power Seat Track From Upright
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

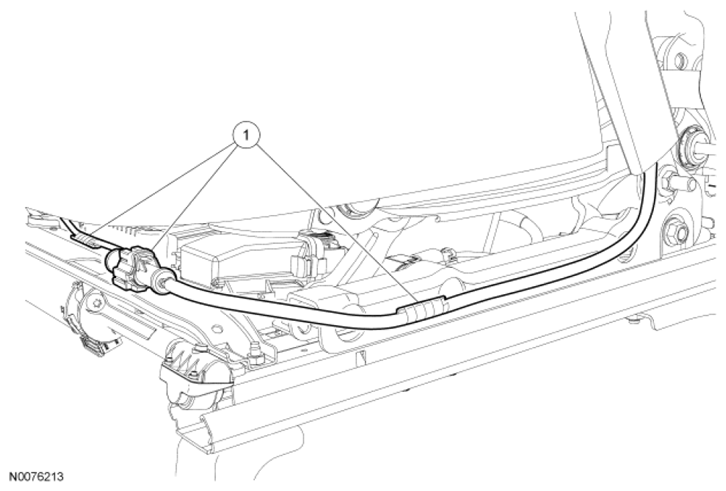

Fig 1: Identifying Front Inboard Side Of Cushion Frame And Power Seat Track From Upright
Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART
Item
Description
1
Safety belt buckle switch electrical connector and wire harness takeout routing attachment points
