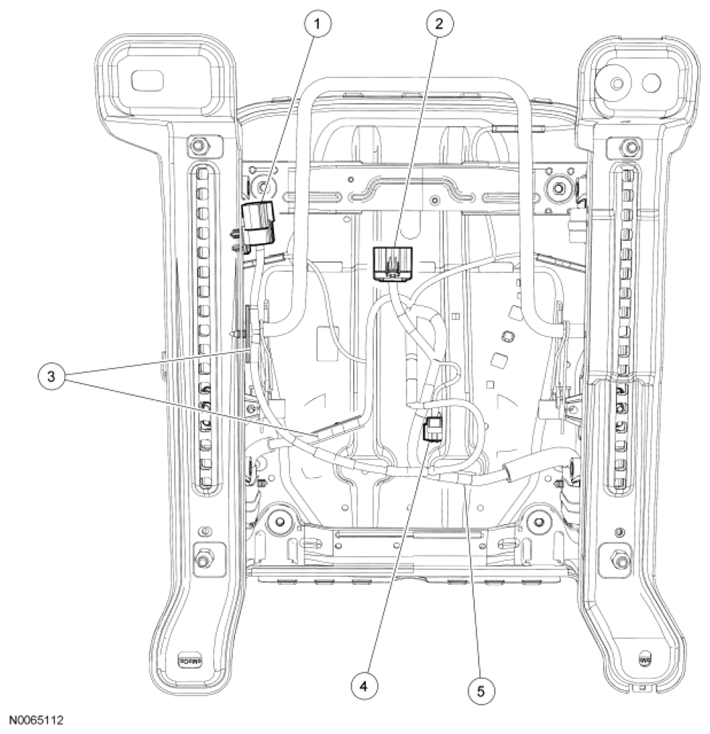

Cushion Frame With Manual Seat Track Attached From Underneath
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION CHART
| Item | Description |
|---|---|
| 1 | In-line electrical connector to vehicle harness electrical connector |
| 2 | Occupant Classification System Module (OCSM) electrical connector |
| 3 | Wire harness with gray tape |
| 4 | Side air bag electrical connector |
| 5 | Wire harness with orange tape |
