Seat Cushion - Rear, 60 Percent: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A new heater mat will come assembled on a new foam pad.

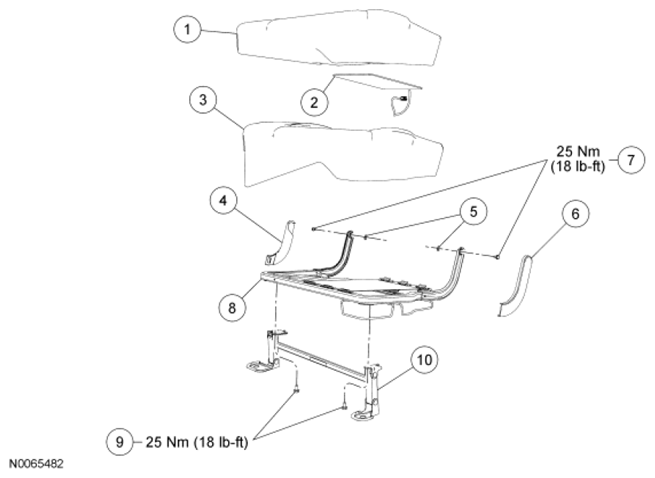

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 63805 | Cushion trim cover |
| 2 | - | Cushion heater mat (if equipped) (part of 63841) |
| 3 | 63841 | Cushion foam pad |
| 4 | 666L76 | Inboard cushion frame pivot bracket cover |
| 5 | - | Wave washers |
| 6 | 666L75 | Outboard cushion frame pivot bracket cover |
| 7 | W712172 | Cushion frame pivot bracket bolts |
| 8 | 63161 | Cushion frame |
| 9 | N605892 | Kneeling assembly-to-cushion frame bolts |
| 10 | 605B11 | Kneeling assembly |
