Brake Booster: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

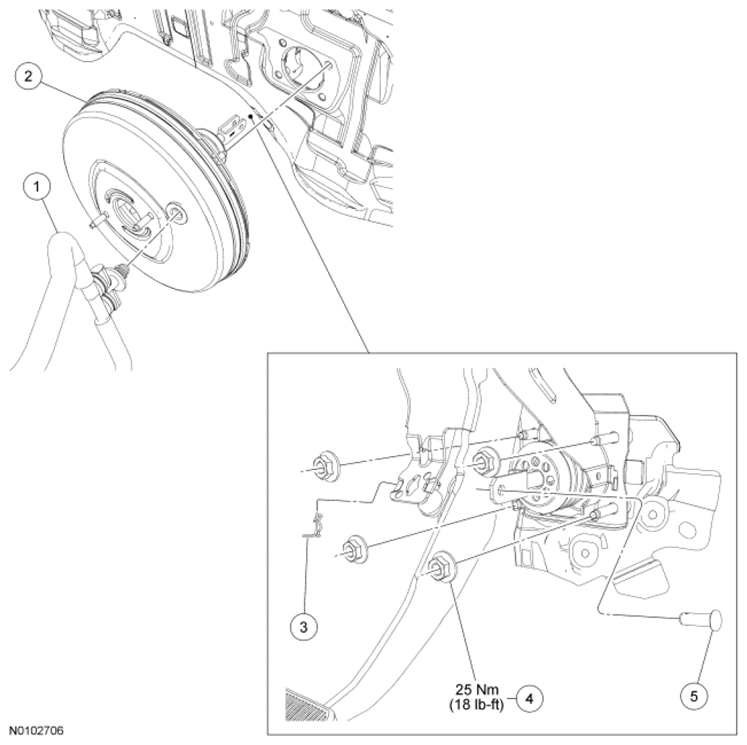

Courtesy of FORD MOTOR CO. PARTS DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
9C490 |
Manifold vacuum hose assembly |
| 2 |
2005 |
Brake booster |
| 3 |
7B096 |
Brake booster push rod spring clip |
| 4 |
W520212 |
Brake booster nut (4 required) |
| 5 |
2N513 |
Brake booster push rod pin |
