Rear Brake Pads: Material
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

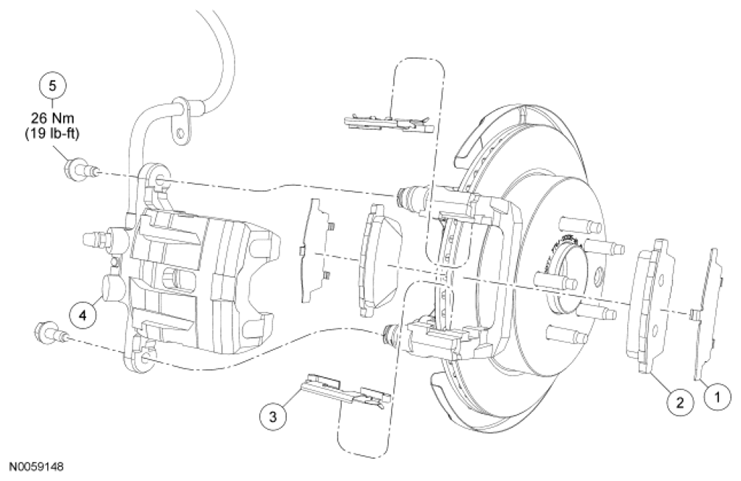

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake pad shim (2 required) (part of 2200) |
| 2 | - | Brake pad (2 required) (part of 2200) |
| 3 | - | Brake pad slide clip (2 required) (part of 2200) |
| 4 | 2552 RH/2553 LH | Brake caliper |
| 5 | - | Brake caliper guide pin bolt (2 required) (part of 2B296) |
