Rear Brake Caliper Support Plate: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

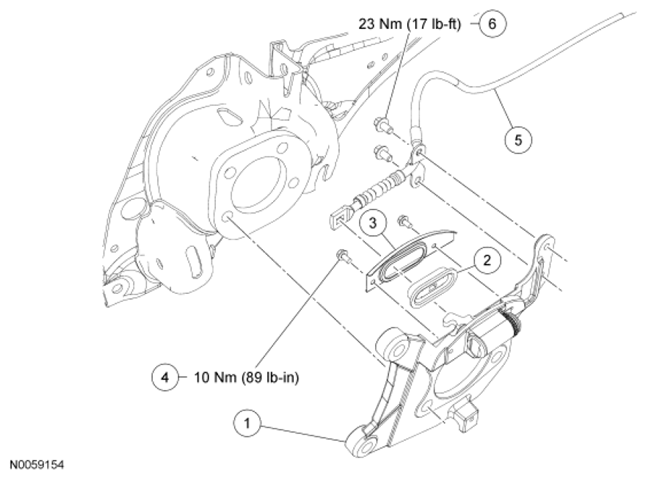

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 2C220 | Brake caliper support plate |
| 2 | 2092 | Dust boot |
| 3 | - | Dust boot shield (part of 2C220) |
| 4 | W302608 | Dust boot shield bolt (2 required) |
| 5 | 2A635 LH/2A604 RH | Rear parking brake cable |
| 6 | W500021 | Parking brake cable-to-support plate bolt (2 required) |
