Front Wheel Drive (FWD) Vehicles

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

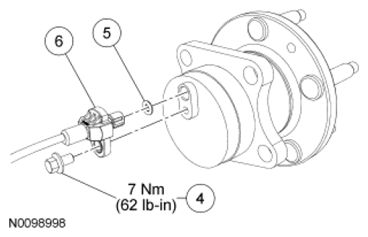

Fig 1: Wheel Speed Sensor, O-Ring Seal With Mounting Bolts With Torque Specifications
G06500842Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
4 N807991 Wheel speed sensor bolt
5 2C186 RH/2C187 LH Wheel speed sensor
6 - O-ring seal (part of 2C186 RH/2C187 LH)
