Removal and Installation
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the wheel and tire. For additional information, refer to WHEELS AND TIRES .
- Remove the retainers and position the fender splash shield aside.
- Disconnect the wheel speed sensor electrical connector.
- Disconnect the 6 pushpin fasteners.
- Remove the front wheel speed sensor bolt and the wheel speed sensor.
- To install, tighten to 7 Nm (62 lb-in).
- To install, reverse the removal procedure.
NOTE:

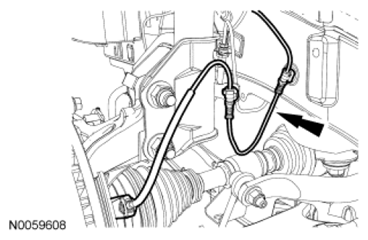

The wheel speed sensor harness must be routed as shown in illustration or damage to the harness during vehicle jounce and rebound can occur.
