Special Tool(s)
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESCRIPTION CHART
| Installer, Constant Velocity Joint Boot Clamp 205-343 (T95P-3514-A) |

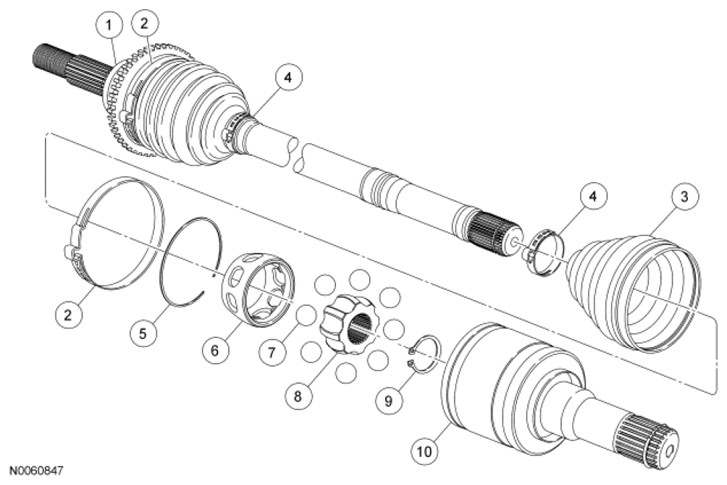

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 4K138 (RH)/4K139 (LH) | Outboard CV joint and interconnecting shaft assembly |
| 2 | 4B478 | Boot clamps (part of 4L537) |
| 3 | 3L537 | CV joint boot (part of 4L537) |
| 4 | 4B478 | Boot clamps (part of 4L537) |
| 5 | 4B422 | Retaining ring |
| 6 | - | Ball cage (part of 3C092) |
| 7 | - | Ball (8 required) (part of 3C092) |
| 8 | - | Inner race (part of 3C092) |
| 9 | 3B426 | Snap ring |
| 10 | 3C092 | Inboard CV joint housing |
