Intermediate Shaft - All Wheel Drive (AWD): Notes

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

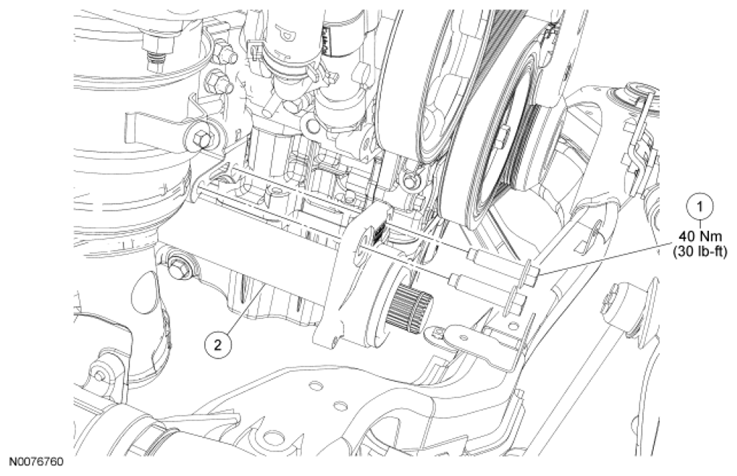

Fig 1: Intermediate Shaft Assembly And Support Bracket Bolt With Torque Specifications
G06500742Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 W500235-S Intermediate shaft support bracket bolt (2 required)
2 3K183 Intermediate shaft assembly
