Special Tool(s)
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESCRIPTION CHART
| Installer, Constant Velocity Joint Boot Clamp 205-343 (T95P-3514-A) |

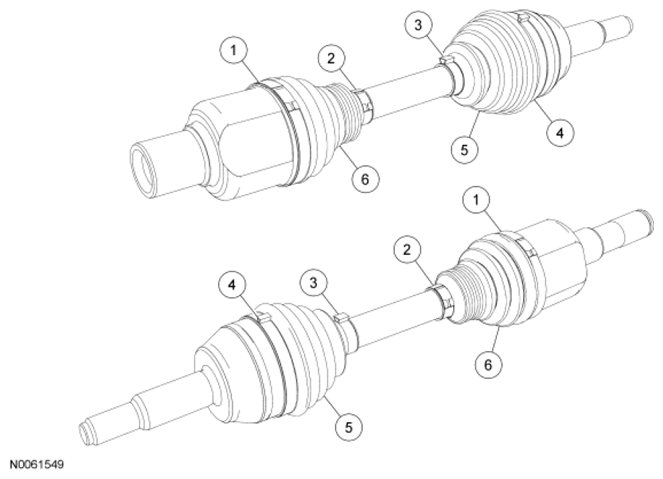

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Low profile large inboard boots inner clamps (serviced in 3A331 kit only) |
| 2 | - | Low profile small inboard boots (serviced in 3A331 kit only) |
| 3 | - | Intermediate shaft boot clamps (serviced in 3A331 kit only) |
| 4 | - | Outboard boot outer clamps (serviced in 3A331 kit only) |
| 5 | - | Outboard CV joint boots (serviced in 3A331 kit only) |
| 6 | - | Inboard CV joint boots (serviced in 3A331 kit only) |
