Power Transfer Unit (PTU)

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

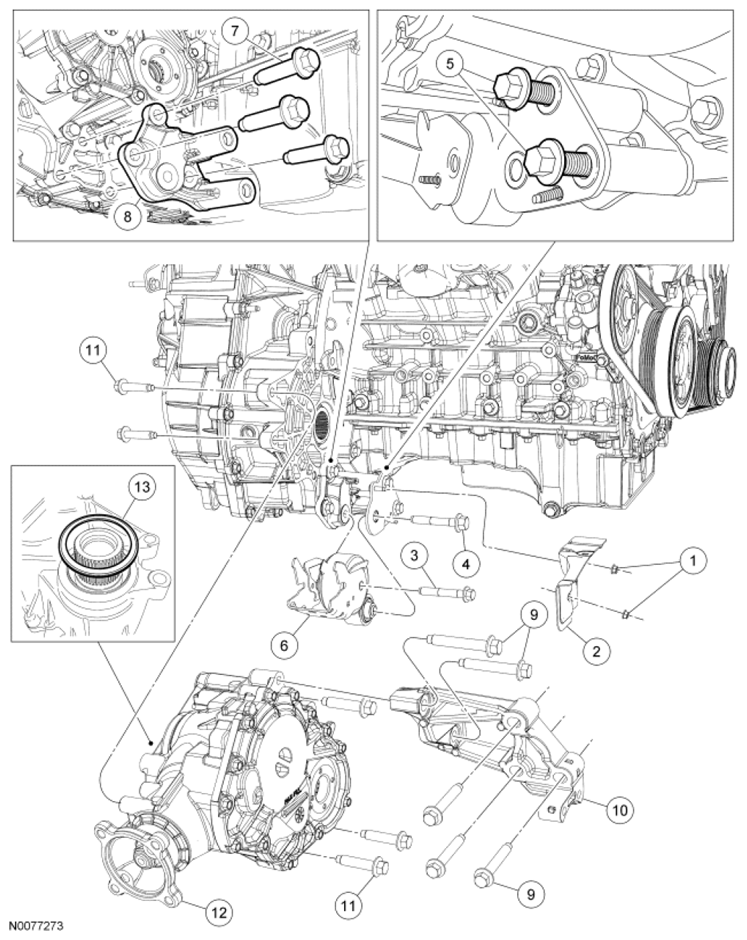

Fig 1: Identifying Power Transfer Unit Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W700101	Roll restrictor shield nuts
2	6C038	Roll restrictor shield
3	W706674	Roll restrictor through bolt
4	W711843	Roll restrictor through bolt
5	W712830	Roll restrictor bracket bolts
6	6P082	Roll restrictor assembly
7	W712830	Roll restrictor bracket-to-transaxle bolt (3 required)
8	6P093	Roll restrictor bracket-to-transaxle
9	W500724	Power Transfer Unit (PTU)-to-support bracket bolts (5 required)
10	7A444	PTU support bracket
11	W500741	PTU -to-transaxle bolts (5 required)
12	7251	PTU
13	7086	Compression seal

NOTE: A new intermediate shaft seal and deflector must be installed whenever the intermediate shaft or Power Transfer Unit (PTU) is removed from the vehicle.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Remove the LH and RH wheel and tire. For additional information, refer to WHEELS AND TIRES .
Remove the intermediate shaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .

NOTE: Index-mark the driveshaft for installation.

Fig 2: Locating Bolts And Support Of Driveshaft

Courtesy of FORD MOTOR CO.

Remove the 4 bolts and support the driveshaft with a length of mechanic's wire.
Remove the exhaust flexible pipe and the RH catalytic converter. For additional information, refer to EXHAUST SYSTEM .
Remove the 2 roll restrictor nuts and the roll restrictor shield.

Fig 3: Locating Restrictor Nuts
Courtesy of FORD MOTOR CO.
Remove the roll restrictor through bolt.

Fig 4: Locating Roll Restrictor Through Bolt
Courtesy of FORD MOTOR CO.
Remove the roll restrictor through bolt, 2 roll restrictor bracket bolts and the roll restrictor assembly.

Fig 5: Locating Roll Restrictor Through Bolt And Roll Restrictor Bracket Bolts
Courtesy of FORD MOTOR CO.
Remove the 3 roll restrictor bracket-to-transaxle bolts and the roll restrictor-to-transaxle bracket.

Fig 6: Locating Roll Restrictor Bracket-To-Transaxle Bolts And Roll Restrictor-To-Transaxle Bracket
Courtesy of FORD MOTOR CO.
Remove the 5 PTU support bracket bolts and the PTU support bracket.

Fig 7: Locating PTU Support Bracket Bolts
Courtesy of FORD MOTOR CO.

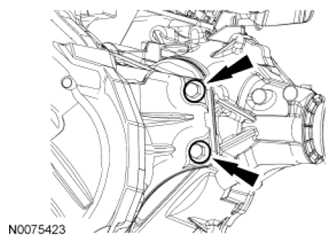

Using a long extension, loosen but do not remove the 2 LH side PTU -to-transaxle bolts.

Fig 8: Locating LH Side PTU-To-Transaxle Bolts
Courtesy of FORD MOTOR CO.

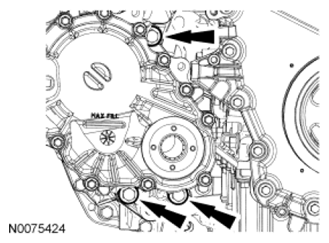

Remove the 3 RH side PTU -to-transaxle bolts and the 2 LH side PTU -to-transaxle bolts previously loosened.

Fig 9: Locating RH Side PTU-To-Transaxle Bolts And LH Side PTU-To-Transaxle Bolts
Courtesy of FORD MOTOR CO.
Separate the PTU from the transaxle and remove it from the vehicle.

NOTE: A new compression seal must be installed whenever the PTU is removed from the vehicle.

Fig 10: Removing Compression Seal

Courtesy of FORD MOTOR CO.

Using a suitable tool, remove the compression seal and discard.
