Power Transfer Unit (PTU)

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

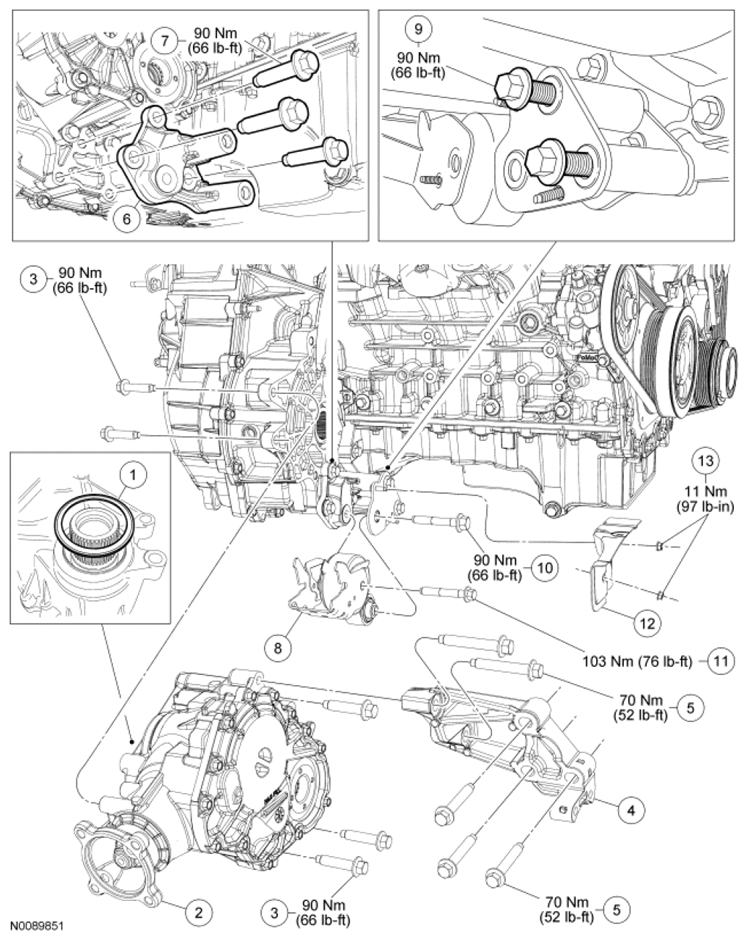

Fig 1: Power Transfer Unit Components With Torque Specifications
G06503424Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 7086 Compression seal
2 7251 Power Transfer Unit (PTU)
3 W500741 PTU  -to-transaxle bolts (5 required)
4 7A444 PTU  support bracket
5 W500724 PTU  -to-support bracket bolts (5 required)
6 6P093 Roll restrictor bracket
7 W712830 Roll restrictor bracket-to-transmission bolt (3 required)
8 6P082 Roll restrictor assembly
9 W712830 Roll restrictor bracket bolt (2 required)
10 W711843 Roll restrictor through bolt
11 W706674 Roll restrictor through bolt
12 6C038 Roll restrictor shield
13 W700101 Roll restrictor shield nuts
    NOTE: A new compression seal must be installed whenever the Power Transfer Unit (PTU) is removed from the vehicle.
    Fig 2: Installing Compression Seal
    G06064426Courtesy of FORD MOTOR CO.
  1. Using a suitable tool, install the new compression seal.
  2. NOTE: A new PTU  intermediate shaft seal must be installed whenever the intermediate shaft or PTU  is removed from the vehicle.
  3. Using a suitable pry bar, move the engine forward. Install a block of wood to hold the engine in the forward position. Install the PTU  with the output flange facing the passenger side, filler plug facing upward. Rotate the PTU  to the transaxle. Install the 5 PTU  -to-transaxle bolts.
    • Tighten to 90 Nm (66 lb-ft).

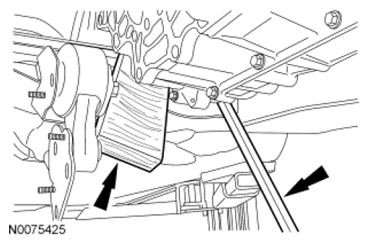

      Fig 3: Moving Engine Forward
      G06503426Courtesy of FORD MOTOR CO.
  4. Position the PTU  support bracket into place and hand-tighten the 5 PTU  support bracket bolts.
    1. Tighten the bolts to the transaxle to 70 Nm (52 lb-ft).
    2. Tighten the bolts to the engine to 70 Nm (52 lb-ft).

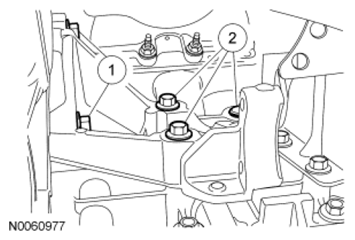

      Fig 4: Identifying PTU Support Bracket Bolts In Sequence
      G06503427Courtesy of FORD MOTOR CO.
  5. Install the roll restrictor-to-transmission bracket and the 3 roll restrictor bracket-to-transmission bolts.
    • Tighten to 90 Nm (66 lb-ft).
      Fig 5: Locating Roll Restrictor-To-Transmission Bracket And Roll Restrictor Bracket-To-Transmission Bolts
      G06501035Courtesy of FORD MOTOR CO.
  6. Install the roll restrictor through bolt and the 2 roll restrictor bracket bolts.
    • Tighten to 90 Nm (66 lb-ft).
      Fig 6: Locating Roll Restrictor Through Bolt And Roll Restrictor Bracket Bolts
      G06501033Courtesy of FORD MOTOR CO.
  7. Install the roll restrictor through bolt
    • Tighten to 103 Nm (76 lb-ft).
      Fig 7: Locating Roll Restrictor Through Bolt
      G06501034Courtesy of FORD MOTOR CO.
  8. Install the roll restrictor shield and the 2 roll restrictor nuts.
    • Tighten to 11 Nm (97 lb-in).
      Fig 8: Locating Roll Restrictor Nuts
      G06501032Courtesy of FORD MOTOR CO.
  9. Install the exhaust flexible pipe and RH catalytic converter. For additional information, refer to EXHAUST SYSTEM .
  10. Install the intermediate shaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .
  11. Line up the index marks on the driveshaft to the index marks on the PTU  flange made during removal and install the 4 bolts.
    • Tighten to 70 Nm (52 lb-ft).
      Fig 9: Locating PTU Flange Made Bolts
      G06505095Courtesy of FORD MOTOR CO.
  12. Fill the PTU  , if necessary. For additional information, refer to POWER TRANSFER UNIT (PTU) DRAINING AND FILLING .
  13. Install the LH and RH wheel and tire. For additional information, refer to WHEELS AND TIRES .
