Intermediate Shaft Seal and Deflector: Installation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The following illustration shows the correct orientation of the seal components when installed in the vehicle.

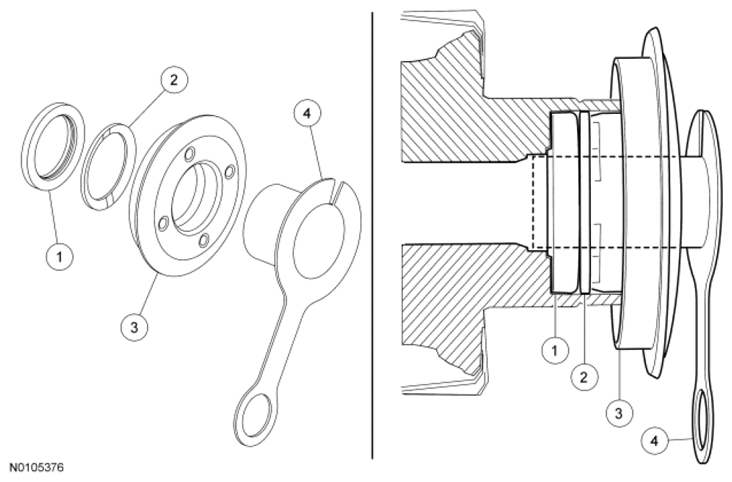

Fig 1: Identifying Orientation Of Seal Components
G06503397Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Description
1 Intermediate shaft seal (part of 7275 kit) - retains red ATF used in the transaxle
2 Alignment washer (part of 7275 kit) - supports and centers the intermediate shaft in the seal
3 Seal deflector (part of 7275 kit) - keeps dust/dirt away from the intermediate shaft seal and Power Transfer Unit (PTU) input shaft seal
4 Seal protector (part of 7275 kit) - protects intermediate shaft seal from damage by the intermediate shaft splines during installation. Must be removed before shaft is fully installed
  1. Place the intermediate shaft seal on the PTU  Linkshaft Seal Installer and Driver Handle with the spring side facing away from the tool.
    Fig 2: Identifying Intermediate Shaft Seal, PTU Linkshaft Seal Installer And Driver Handle
    G06064407Courtesy of FORD MOTOR CO.
  2. Using the PTU  Linkshaft Seal Installer and Driver Handle, install the intermediate shaft seal.
    Fig 3: Identifying PTU Linkshaft Seal Installer And Driver Handle (205-883 And 205-907)
    G06064408Courtesy of FORD MOTOR CO.
  3. Place the alignment washer on the PTU  Linkshaft Seal Installer and Driver Handle.
    Fig 4: Identifying PTU Linkshaft Seal Installer And Driver Handle (205-883 And 205-907)
    G06270929Courtesy of FORD MOTOR CO.
  4. NOTE: Do not use force when installing the alignment washer or damage to the washer can occur.
    Fig 5: Identifying PTU Linkshaft Seal Installer And Driver Handle (205-883 And 205-907)
    G06064408Courtesy of FORD MOTOR CO.
  5. Using the PTU  Linkshaft Seal Installer and Driver Handle, install the alignment washer by hand, pushing it in until it bottoms against the seal.
  6. NOTE: Do not overheat (melt) the seal deflector. Monitor the temperature of the deflector with a suitable temperature measuring device, such as a digital temperature laser or infrared thermometer, while heating. Do not allow the temperature to exceed 100°C (212°F). Overheating will damage the deflector. If the deflector is damaged, a new deflector must be used.
    NOTE: Apply a small amount of silicone brake caliper grease and dielectric compound to the inner lip of the deflector where it installs on the tube inside the PTU  before heating. This will ease the installation of the deflector.
  7. Position the deflector on the PTU  Linkshaft Seal Dust Shield Installer using silicone brake caliper grease and dielectric compound to retain it to the installer. Using a suitable heat gun, heat the back of the tool to a minimum of 71°C (160°F) and a maximum of 93°C (200°F) by concentrating the heat across the back of the installer while rotating the tool. Once the optimum temperature is achieved on the tool, move the heat gun to the front of the tool and heat the inside of the deflector where it snaps onto the PTU  shaft until the temperature of the deflector is a minimum of 93°C (200°F) to a maximum of 100°C (212°F).
    • As an alternative method to heating the seal deflector, place the deflector in boiling water for 3 to 5 minutes. Dry off the deflector and install.
      Fig 6: Identifying Special Tools (205-882 And 205-907)
      G06064411Courtesy of FORD MOTOR CO.
  8. Using a 5-pound or larger dead blow hammer, install the seal deflector immediately after heating using the PTU  Linkshaft Seal Dust Shield Installer and Driver Handle.
    Fig 7: Identifying PTU Linkshaft Seal Dust Shield Installer And Driver Handle
    G06270932Courtesy of FORD MOTOR CO.
  9. Make sure the deflector is completely seated all the way around and there are no cracks on the face. The deflector is correctly installed when the face of the deflector is recessed 3-5 mm (0.12-0.20 in) into the pocket all the way around.
    Fig 8: Locating Deflector Position
    G06064413Courtesy of FORD MOTOR CO.
  10. Once the deflector is fully seated, insert the seal protector into the PTU  deflector ID.
    Fig 9: Locating Seal Protector
    G06064414Courtesy of FORD MOTOR CO.
  11. Apply a thin coat of silicone brake caliper grease and dielectric compound to the intermediate shaft seal journal.
  12. NOTE: A slight effort may be required to fully seat the intermediate and halfshaft assembly as it passes through the alignment washer.
    Fig 10: Installing Intermediate And Halfshaft Assembly Through Deflector (1 Of 2)
    G06064415Courtesy of FORD MOTOR CO.
    Fig 11: Installing Intermediate And Halfshaft Assembly Through Deflector (2 Of 2)
    G06064416Courtesy of FORD MOTOR CO.
  13. Partially install the intermediate and halfshaft assembly through the PTU  deflector until the splines have cleared the seal protector. Pull the seal protector out of the deflector and off of the intermediate shaft. Complete the installation of the intermediate and halfshaft assembly.
  14. Fully install the intermediate and halfshaft assembly and the 2 bolts.
    • Tighten to 40 Nm (30 lb-ft)
      Fig 12: Locating Intermediate Shaft Bracket Bolts
      G06270937Courtesy of FORD MOTOR CO.
  15. NOTE: A significant amount of residual fluid will collect between the seal and deflector during this repair. This is a normal condition and should not be misinterpreted as a leak after the repair is complete.
  16. Using metal brake parts cleaner, thoroughly clean the deflector and intermediate shaft area of any residual fluid that may have accumulated during the repair.
  17. Position the halfshaft and ball joint into the wheel knuckle. Install the new ball joint bolt and nut.
    • Tighten to 55 Nm (41 lb-ft).
      Fig 13: Locating Ball Joint Bolt And Nut
      G06500713Courtesy of FORD MOTOR CO.
  18. Position the stabilizer bar link and install the new nut.
    • Tighten to 90 Nm (66 lb-ft).

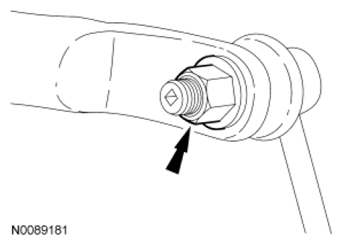

      Fig 14: Locating Stabilizer Bar Link Nut
      G06503388Courtesy of FORD MOTOR CO.
  19. Install the RH brake disc. For additional information, refer to FRONT DISC BRAKE .
  20. Position the brake flexible hose bracket to the shock absorber and install the bolt.
    • Tighten to 20 Nm (177 lb-in).
      Fig 15: Locating Shock Absorber Bolt
      G06500711Courtesy of FORD MOTOR CO.
  21. Connect the wheel speed sensor harness to the shock absorber bracket.
    Fig 16: Locating Wheel Speed Sensor Harness To Shock Absorber Bracket
    G06500712Courtesy of FORD MOTOR CO.
  22. NOTE: Do not tighten the halfshaft nut with the vehicle on the ground. The nut must be tightened to specification before the vehicle is lowered onto the wheels. Wheel bearing damage will occur if the wheel bearing is loaded with the weight of the vehicle applied.
  23. Apply the brake to keep the halfshaft from rotating. Using the previously removed wheel hub nut, seat the halfshaft into the front wheel hub.
    • Tighten to 350 Nm (258 lb-ft).
    • Remove and discard the wheel hub nut.
      Fig 17: Locating Front Wheel Hub Nut
      G06065033Courtesy of FORD MOTOR CO.
  24. NOTE: The wheel hub nut contains a one-time locking chemical that is activated by the heat created when it is tightened. Install and tighten the new wheel hub nut to specification within 5 minutes of starting it on the threads. Always install a new wheel hub nut after loosening or when not tightened within the specified time or damage to the components can occur.
  25. Apply the brake to keep the halfshaft from rotating and install a new wheel hub nut.
    • Tighten to 350 Nm (258 lb-ft).
  26. Install the RH front wheel and tire. For additional information, refer to WHEELS AND TIRES .
