Parking Lamp Bulb - Front: MKX

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

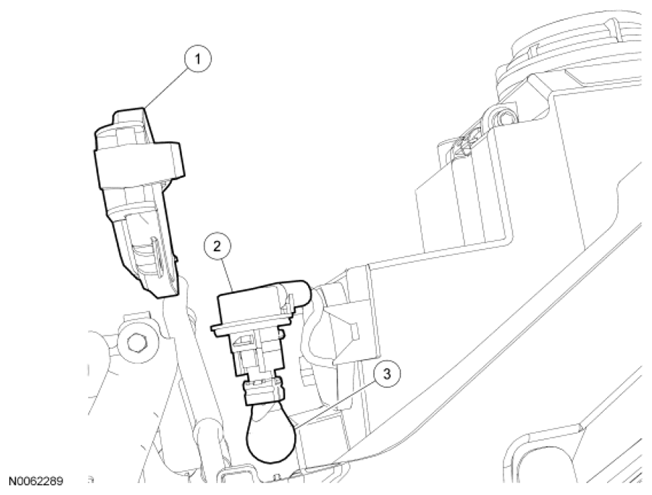

Fig 1: Identifying Parking Lamp Bulb - Front Components (MKX)
G06503856Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - Headlamp bulb access cover (part of 13008)
2 13411 Front parking lamp electrical connector
3 13466 Front parking lamp bulb
