Parking Lamp Bulb - Front: Edge

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

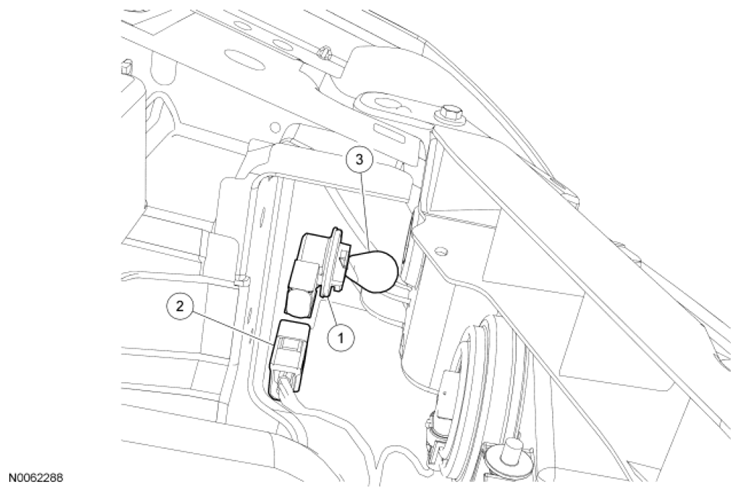

Fig 1: Identifying Parking Lamp Bulb - Front Components (Edge)
G06503855Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 13411 Front parking lamp bulb holder
2 - Front parking lamp electrical connector (part of 14290)
3 13466 Front parking lamp bulb
