Headlamp Switch: MKX
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

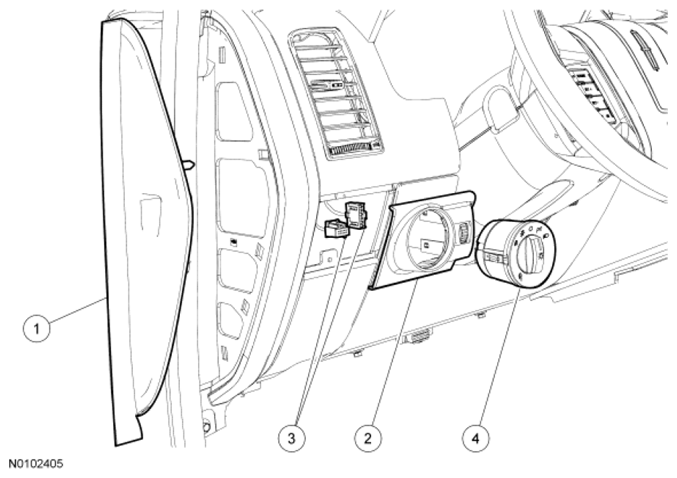

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
7804481 |
Instrument panel side finish panel |
| 2 |
- |
Headlamp switch bezel (part of 11654) |
| 3 |
11654 |
Headlamp switch |
| 4 |
- |
Headlamp switch electrical connectors (part of 14401) |
