Special Tool(s)
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESCRIPTION CHART
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

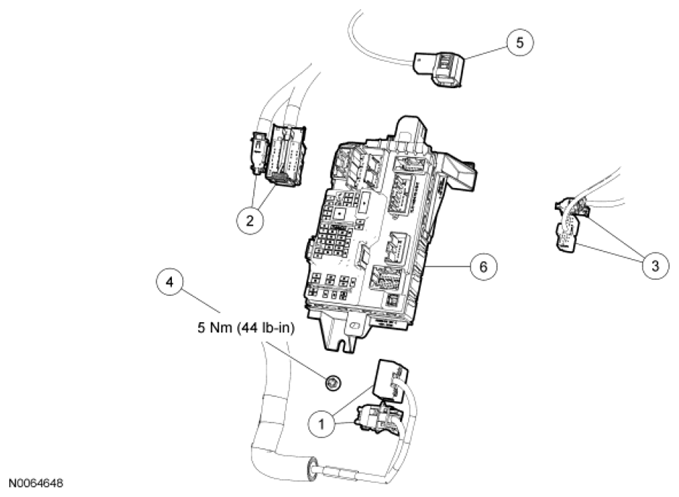

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Smart Junction Box (SJB) electrical connectors (part of 14401) |
| 2 | - | SJB electrical connectors (part of 14A005) |
| 3 | - | SJB electrical connectors (part of 14290) |
| 4 | - | SJB nut |
| 5 | - | SJB electrical connector (part of 14290) |
| 6 | - | SJB |
