LH side with power liftgate

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cover and the switch from the LH quarter trim panel.
- Disconnect the electrical connector.

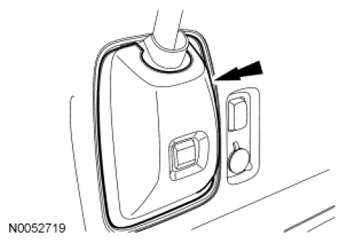

  Fig 1: Locating LH Quarter Trim Panel Switch Connector
  Courtesy of FORD MOTOR CO.
Remove the power liftgate rod-to-liftgate nut cover and nut.
- To install, tighten to 11 Nm (97 lb-in).

  Fig 2: Locating Power Liftgate Rod-To-Liftgate Nut Cover And Nut
  Courtesy of FORD MOTOR CO.
All vehicles
Remove the rear cargo load area.
- Remove the foam blocks from the spare tire well.

NOTE: Inspect the safety belt lower anchor bolt cover for damage. If the safety belt lower anchor bolt cover does not remain in place, install a new cover.

Remove the safety belt lower anchor bolt cover and remove the safety belt lower anchor bolt.
- To install, tighten to 54 Nm (40 lb-ft).

NOTE: Make sure the pushpin retainers are removed with the quarter trim panel.

Remove the RH or LH quarter trim panel.
- Disconnect the electrical connectors, if equipped.
To install, reverse the removal procedure.
