Removal And Installation: Headliner: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

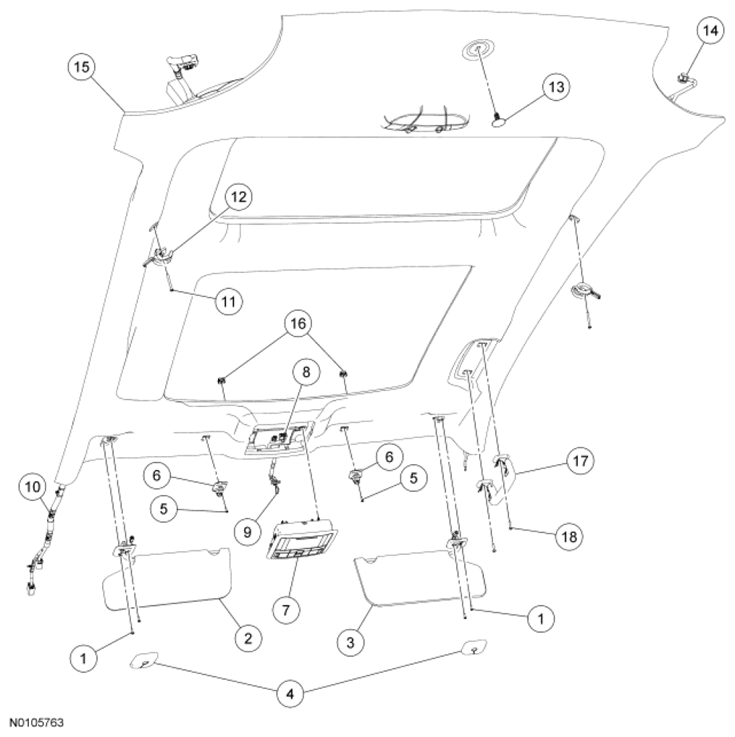

Headliner with roof opening panel shown, headliner without roof opening panel similar.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W502564-S424 | Sun visor screws (4 required) |
| 2 | 04101 | LH sun visor |
| 3 | 04100 | RH sun visor |
| 4 | 672A40 | Sun visor screw cover |
| 5 | W504242 | Sun visor arm clip screws (2 required) |
| 6 | 04132 | Sun visor arm clips |
| 7 | 519A58 | Overhead console |
| 8 | - | Overhead console electrical connector |
| 9 | - | Rear view mirror electrical connector |
| 10 | 14334 | Headliner wiring harness |
| 11 | W504349 | Garment hanger screw |
| 12 | 29024 | Garment hanger |
| 13 | W708761 | Headliner pushpin retainer |
| 14 | 17409 | Headliner washer fluid hose |
| 15 | 51944 | Headliner |
| 16 | - | Headliner magnets |
| 17 | 31406 | Assist handle |
| 18 | W506946 | Assist handle screw |
