D-Pillar Trim Panel

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Remove the quarter trim panel. For additional information, refer to QUARTER TRIM PANEL .
Remove the D-pillar trim panel.
- Disengage the trim panel from the retainers.
- Disconnect the speaker wire connector from the trim panel, if equipped.

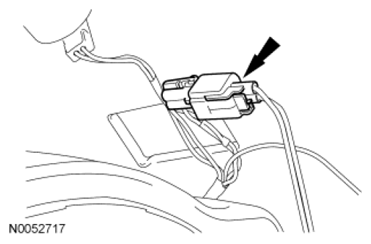

  Fig 1: Locating Speaker Wire Connector
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
