A-Pillar Trim Panel: Removal

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Position the door opening weatherstrip aside.

NOTE: The LH and RH A-pillar trim panels are attached to the A-pillar with a safety tether. During a side air curtain deployment, the A-pillar trim panel tether helps prevent the trim panel from striking the occupant. The tether must be detached from the A-pillar trim panel before the A-pillar trim panel can be removed. Failure to detach the tether will result in damage to the tether or the A-pillar trim panel.

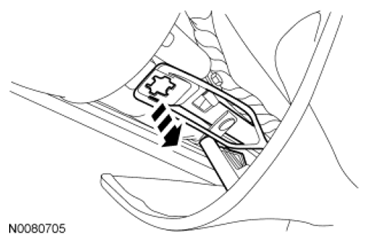

Fig 1: Releasing A-Pillar Trim Panel Retaining Clips

Courtesy of FORD MOTOR CO.

Gently pull the upper A-pillar trim panel toward the center of the vehicle to release the A-pillar trim panel retaining clips.

NOTE: The A-pillar trim panel tether is removed from the A-pillar for clarity.

Remove the A-pillar trim panel tether from the A-pillar trim panel.
- Carefully route the A-pillar trim panel tether end through the hole in the A-pillar trim panel.

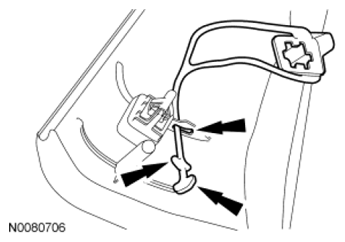

  Fig 2: Locating A-Pillar Trim Panel Tether
  Courtesy of FORD MOTOR CO.
Remove the A-pillar trim panel.
