Side Impact Sensor - B-Pillar

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: RH side shown in illustration, LH side similar.

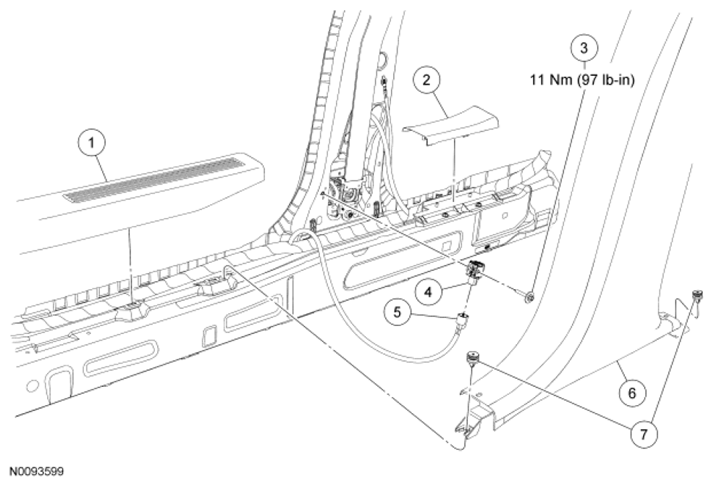

Fig 1: Side Impact Sensor Replacement Components - B-Pillar With Torque Specifications
G06504915Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 13208 Front door scuff plate
2 13228 Rear door scuff plate
3 W712191 Side impact sensor retaining bolt
4 14B345 Side impact sensor
5 - Side impact sensor electrical connector (part of 14A005)
6 24356 Lower B-pillar trim panel
7 - Lower B-pillar trim panel retainers (part of 24356)
WARNING: If a vehicle has been in a crash, inspect the restraints control module (RCM) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM  and sensors must be installed whether or not the air bags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.
NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition switch is ON.
NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
  1. Position the front seat forward.
  2. Depower the SRS  . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
  3. Remove the front door scuff plate.
    • Pull up to release the 5 retaining clips.
  4. Remove the rear door scuff plate.
    • Pull up to release the 2 retaining clips.
  5. Detach the 2 retainers and remove the lower B-pillar trim panel.

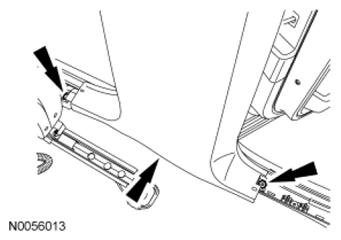

    Fig 2: Locating Lower B-Pillar Trim Panel Retainers
    G06504916Courtesy of FORD MOTOR CO.
  6. Disconnect the side impact sensor electrical connector.
  7. WARNING: Always tighten the fasteners of the restraints control module (RCM) and impact sensor (if equipped) to the specified torque. Failure to do so may result in incorrect restraint system operation, which increases the risk of personal injury or death in a crash.
    NOTE: Make sure the B-pillar and side impact sensor mating surfaces are clean and free of foreign material.
    NOTE: Note the position of the side impact sensor locating tabs for correct installation.
  8. Remove the bolt and side impact sensor.
    • To install, tighten to 11 Nm (97 lb-in).
  9. To install, reverse the removal procedure.
  10. Repower the SRS  . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
