Passenger Air Bag Module - Edge: Removal

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Always carry or place a live air bag module with the air bag and deployment door/trim cover/tear seam pointed away from the body. Do not set a live air bag module down with the deployment door/trim cover/tear seam face down. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.
WARNING: Never probe the electrical connectors on air bag, Safety Canopy® or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.
NOTE: Do no install a new passenger air bag module assembly due to a damaged or discolored passenger air bag cover. The passenger air bag cover can be serviced separately from the passenger air bag module assembly. For additional information, refer to AIR BAG TRIM COVER - PASSENGER, EDGE .
NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition switch is ON.
NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
  1. Depower the SRS  . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
  2. Open and lower the glove compartment door.
    • If equipped, detach the glove compartment door dampener.
  3. Remove the 2 passenger air bag module bolts from the cross-car beam bracket.
    4. NOTE: Do not handle the passenger air bag module by grabbing the edges of the trim cover. Damage to the air bag module may occur.
  4. Through the glove compartment opening, release the LH side passenger air bag cover clips. Then release the foreward-most passenger air bag cover clips and separate the passenger air bag cover and passenger air bag module from the instrument panel.
    • Push firmly to release the air bag cover clips.
  5. Using a small screwdriver as shown in illustration, lift up and release the locking button on the RH passenger air bag module electrical connector.

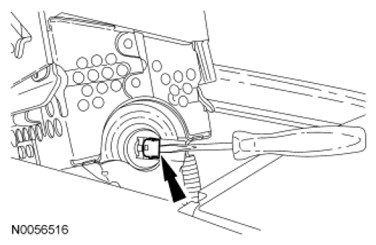

    Fig 1: Releasing Locking Button On RH Passenger Air Bag Module Electrical Connector
    G06504787Courtesy of FORD MOTOR CO.
    6. NOTE: Do not pull the passenger air bag module electrical connector out by the locking button. Damage to the locking button may occur.
  6. With the RH locking button released, remove the RH electrical connector.
  7. Using a small screwdriver as shown in illustration, lift up and release the locking button on the LH passenger air bag module electrical connector.

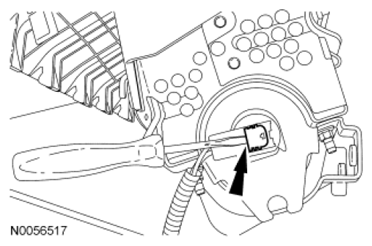

    Fig 2: Releasing Locking Button On LH Passenger Air Bag Module Electrical Connector
    G06504788Courtesy of FORD MOTOR CO.
    8. NOTE: Do not pull the passenger air bag module electrical connector out by the locking button. Damage to the locking button may occur.
  8. With the LH locking button released, remove the LH electrical connector and remove the passenger air bag module.
