Passenger Air Bag Deactivation (PAD) Indicator
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

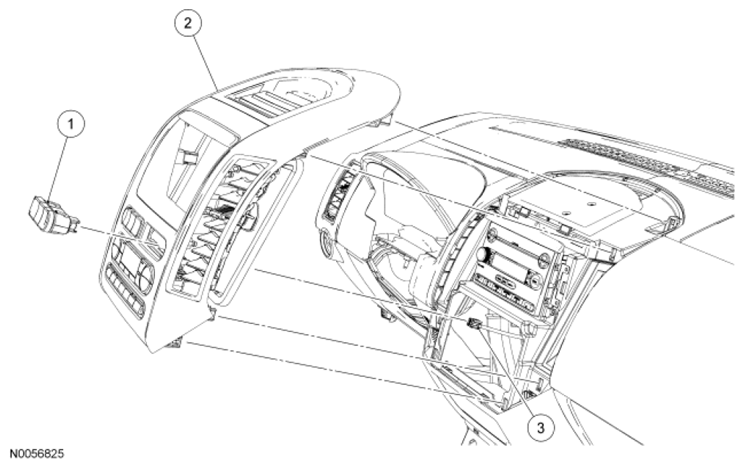

Edge
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 13D730 | Passenger Air Bag Deactivation (PAD) indicator |
| 2 | 04302 | Instrument panel center finish panel |
| 3 | - | PAD indicator electrical connector (part of 14401) |

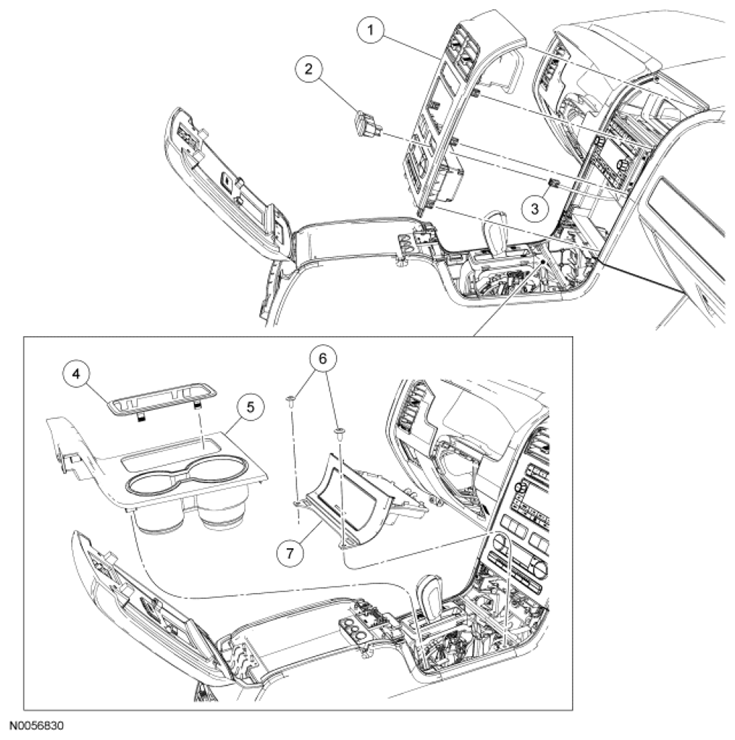

MKX
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 04302 | Instrument panel center finish panel |
| 2 | 13D730 | Passenger Air Bag Deactivation (PAD) indicator |
| 3 | - | PAD indicator electrical connector (part of 14401) |
| 4 | 7E391 | Console shifter bezel |
| 5 | 045A76 | Center finish console panel |
| 6 | W706092 | Instrument panel power point/storage bin retainers |
| 7 | 047A04 | Instrument panel power point/storage bin |
NOTE:
The Passenger Air Bag Deactivation (PAD) indicator is part of the hazard switch/traction control switch assembly.
All vehicles
- Turn the ignition OFF and wait at least one minute.
MKX
- Remove the console shifter bezel.
- Remove the center finish console panel.
- Remove the 2 retainers from the power point/storage bin.
All vehicles
- Pull and release the instrument panel center finish panel.
- Disconnect the PAD indicator electrical connector.

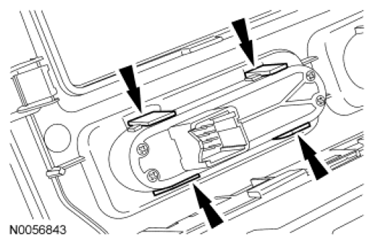

- Release the 4 tabs (2 upper and 2 lower) on the PAD indicator and remove it from the instrument panel center finish panel.
- To install, reverse the removal procedure.
NOTE:
Ignition must be OFF when disconnecting the PAD
indicator electrical connector. Otherwise, a DTC will be set in the Restraints Control Module (RCM) memory and must be cleared before releasing the vehicle.
