Supplemental Restraint System (SRS) Deactivation and Reactivation: Reactivation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. Remove RCM  fuse 46 (7.5A) from the SJB  .
  2. Disconnect the battery ground cable and wait at least one minute.
  3. Connect the driver seat side air bag module electrical connector and then slide and engage the seat side air bag electrical connector locking clip. Then attach the driver seat side air bag module electrical connector to the seat cushion frame.

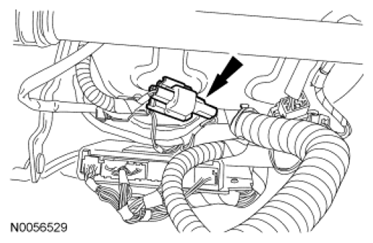

    Fig 1: Locating Driver Seat Side Air Bag Module Electrical Connector
    G06504801Courtesy of FORD MOTOR CO.
    4. NOTE: Do not install the Safety Canopy® module electrical connector by the locking button. Damage to the locking button may occur.
    NOTE: The Safety Canopy® module electrical connector locking button must be in the released position when the connector is being installed or connector damage may occur.
    NOTE: The Safety Canopy® module electrical connector is unique and cannot be reversed when connected to the Safety Canopy® module. Match the electrical connector key to the keyway in the Safety Canopy® module. Do not force the electrical connector into the Safety Canopy® module. Damage to the connector or component may occur.

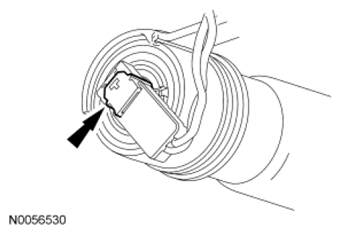

    Fig 2: Locating Driver Safety Canopy® Module Electrical Connector
    G06504803Courtesy of FORD MOTOR CO.
  4. With the locking button released, install the driver Safety Canopy® module electrical connector fully into the driver Safety Canopy® module and seat the locking button.
  5. Install the driver side D-pillar trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
    6. NOTE: Do not install the Safety Canopy® module electrical connector by the locking button. Damage to the locking button may occur.
    NOTE: The Safety Canopy® module electrical connector locking button must be in the released position when the connector is being installed or connector damage may occur.
    NOTE: The Safety Canopy® module electrical connector is unique and cannot be reversed when connected to the Safety Canopy® module. Match the electrical connector key to the keyway in the Safety Canopy® module. Do not force the electrical connector into the Safety Canopy® module. Damage to the connector or component may occur.
    Fig 3: Locating Passenger Safety Canopy® Module Electrical Connector
    G06504804Courtesy of FORD MOTOR CO.
  6. With the locking button released, install the passenger Safety Canopy® module electrical connector fully into the passenger Safety Canopy® module and seat the locking button.
  7. Install the passenger side D-pillar trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  8. Connect the passenger seat side air bag module electrical connector and then slide and engage the seat side air bag electrical connector locking clip.

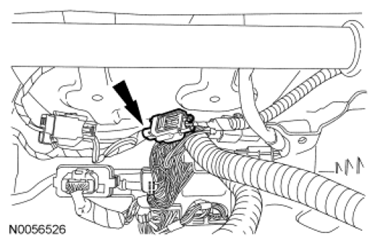

    Fig 4: Locating Passenger Seat Side Air Bag Module Electrical Connector
    G06504798Courtesy of FORD MOTOR CO.

    MKX

    9. NOTE: Do not install the passenger air bag module electrical connectors by the locking buttons. Damage to the locking buttons may occur.
    NOTE: The passenger air bag module electrical connector locking buttons must be in the released position when the connector is being installed or connector damage may occur.
    NOTE: The passenger air bag module electrical connectors are unique and cannot be reversed when connected to the passenger air bag module. Match the electrical connector key to the keyway in the passenger air bag module. Do not force the electrical connectors into the passenger air bag module. Damage to the connector or component may occur.
    NOTE: RH side shown in illustration, LH similar.

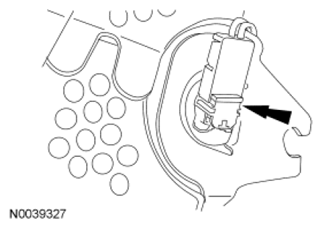

    Fig 5: Locating Passenger Air Bag Module Electrical Connector
    G06504806Courtesy of FORD MOTOR CO.
  9. Position the passenger air bag module on the cross vehicle beam. With the locking buttons released, install the 2 passenger air bag module electrical connectors fully into the passenger air bag module and seat the locking buttons.
    10. NOTE: During the passenger air bag module installation, make sure all 7 of the air bag trim cover hooks are fully seated in the instrument panel.

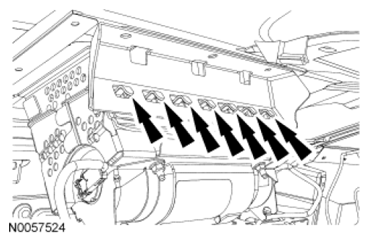

    Fig 6: Locating Air Bag Trim Cover Hooks
    G06504795Courtesy of FORD MOTOR CO.
  10. Install the passenger 7 air bag trim cover hooks into the instrument panel. Raise the rear of the passenger air bag module onto the 3 mounting studs.
  11. Install the 3 passenger air bag module nuts.
    • Tighten to 7 Nm (62 lb-in).

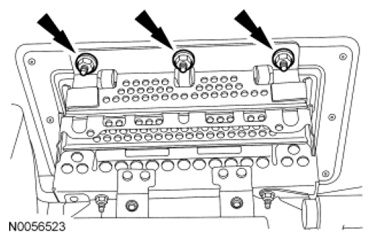

      Fig 7: Locating Passenger Air Bag Module Nuts
      G06504794Courtesy of FORD MOTOR CO.
    12. NOTE: To avoid a squeak or rattle condition, install the passenger air bag module bracket and passenger air bag module bolts in this order.
  12. Install the passenger air bag module support bracket and the 4 bolts.
    1. Install the passenger air bag module support bracket and 2 bolts to the cross vehicle beam.
      • Tighten to 8 Nm (71 lb-in).
    2. Install the inboard passenger air bag module support bracket-to-passenger air bag module bolt.
      • Tighten to 8 Nm (71 lb-in).
    3. Install the outboard passenger air bag module support bracket-to-passenger air bag module bolt.
      • Tighten to 8 Nm (71 lb-in).

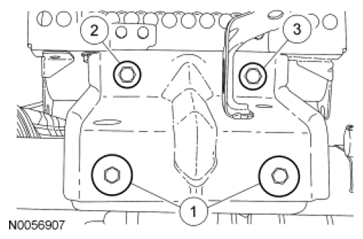

        Fig 8: Locating Passenger Air Bag Module Support Bracket Bolts
        G06504809Courtesy of FORD MOTOR CO.
  13. Install the screw and the RH duct assembly.

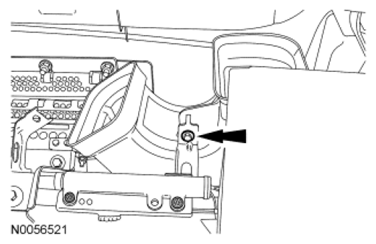

    Fig 9: Locating RH Duct Assembly Screw
    G06504792Courtesy of FORD MOTOR CO.
  14. Install the screw and the LH duct assembly.

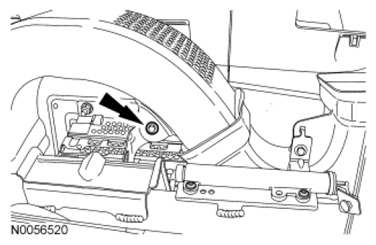

    Fig 10: Locating LH Duct Assembly Screw
    G06504791Courtesy of FORD MOTOR CO.
  15. Install the screw for the LH duct assembly bracket in the front of the instrument panel.

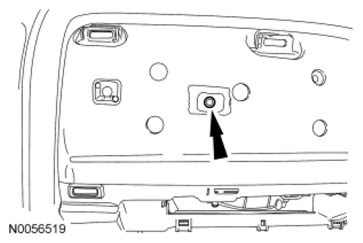

    Fig 11: Locating LH Duct Assembly Bracket Screw
    G06504790Courtesy of FORD MOTOR CO.
    16. NOTE: Make sure the 5 RH instrument panel finish panel retaining clips are fully seated in the instrument panel.

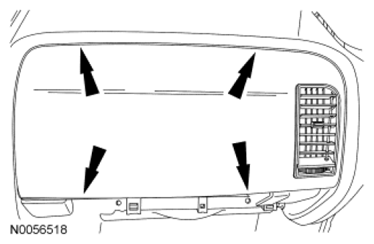

    Fig 12: Locating RH Instrument Panel Finish Panel Retaining Clips
    G06504789Courtesy of FORD MOTOR CO.
  16. Install the RH instrument panel finish panel.

    Edge

    17. NOTE: Do not install the passenger air bag module electrical connectors by the locking buttons. Damage to the locking buttons may occur.
    NOTE: The passenger air bag module electrical connector locking buttons must be in the released position when the connector is being installed or connector damage may occur.
    NOTE: The passenger air bag module electrical connectors are unique and cannot be reversed when connected to the passenger air bag module. Match the electrical connector key to the keyway in the passenger air bag module. Do not force the electrical connectors into the passenger air bag module. Damage to the connector or component may occur.
    NOTE: RH side show in illustration, LH similar.
    Fig 13: Locating Passenger Air Bag Module Electrical Connector
    G06504806Courtesy of FORD MOTOR CO.
  17. With the locking buttons released, install the 2 passenger air bag module electrical connectors fully into the passenger air bag module and seat the locking buttons.
    18. NOTE: Do not handle the passenger air bag module by grabbing the edges of the air bag trim cover. Damage to the air bag module may occur.
    NOTE: During passenger air bag module installation, make sure all the air bag trim cover clips are fully seated in the instrument panel.
  18. Install the passenger air bag module trim cover rear-most clips into the instrument panel first. Then install the side trim cover clips working around to the forward-most clips seating each of them fully into the instrument panel.
    19. NOTE: To avoid a squeak or rattle condition, install the 2 passenger air bag module bolts in this order.
  19. Install the 2 passenger air bag module bolts.
    1. Install the inboard passenger air bag module bolt.
      • Tighten to 8 Nm (71 lb-in).
    2. Install the outboard passenger air bag module bolt.
      • Tighten to 8 Nm (71 lb-in).

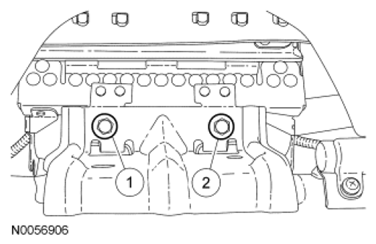

        Fig 14: Identifying Passenger Air Bag Module Bolts
        G06504815Courtesy of FORD MOTOR CO.

    All vehicles

  20. Hook the glove compartment door to the instrument panel. Close the glove compartment door.
    • If equipped, attach the glove compartment door dampener.
    21. NOTE: Do not install the driver air bag module electrical connectors by the locking buttons. Damage to the locking buttons may occur.
    NOTE: The driver air bag module electrical connector locking buttons must be in the released position when the connector is being installed or connector damage may occur.
    NOTE: The driver air bag module electrical connectors are unique and cannot be reversed when connected to the driver air bag module. Match the electrical connector key to the keyway in the passenger air bag module. Do not force the electrical connectors into the passenger air bag module. Damage to the connector or component may occur.
    Fig 15: Locating Driver Air Bag Module Electrical Connectors
    G06184249Courtesy of FORD MOTOR CO.
  21. With the locking buttons released, install the driver air bag module electrical connectors fully into the driver air bag module and seat the locking buttons.
    22. NOTE: Audible clicks will be heard when both wire clips are seated in the driver air bag module.
  22. Align the driver air bag module locking pins to the steering wheel and, while pushing inward, seat the 2 driver air bag module locking pins to the steering wheel wire clips.
    • When the 2 locking pins are seated in place, there should be an even gap between the driver air bag module trim cover and the steering wheel.
  23. Turn the ignition from OFF to ON.
  24. Install RCM  fuse 46 (7.5A) to the SJB  and install the lower kick panel fuse cover.
    25. WARNING: Make sure no one is in the vehicle and there is nothing blocking or placed in front of any air bag module when the battery is connected. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.
  25. Connect the battery ground cable.
  26. Prove out the SRS  as follows:

    Turn the ignition from ON to OFF. Wait 10 seconds, then turn the ignition back to ON and monitor the air bag warning indicator with the air bag modules installed. The air bag warning indicator will light continuously for approximately 6 seconds and then turn off. If an air bag SRS  fault is present, the air bag warning indicator will:

    • fail to light.
    • remain lit continuously.
    • flash at a 5Hz rate (not configured).

    The air bag warning indicator may not illuminate until approximately 30 seconds after the ignition has been turned from the OFF to the ON position. This is the time required for the RCM  to complete the testing of the SRS  . If the air bag warning indicator is inoperative and an SRS  fault exists, a chime will sound in a pattern of 5 sets of 5 beeps. If this occurs, the air bag warning indicator will need to be repaired before diagnosis can continue.

    Clear all continuous DTCs from the RCM  and Occupant Classification System Module (OCSM) using a scan tool.
