Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS) Components
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

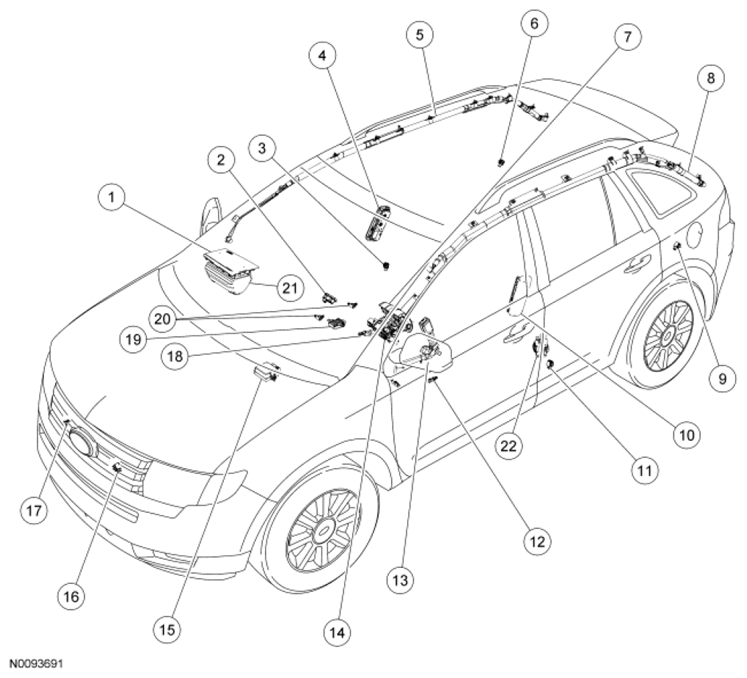

Fig 1: Identifying Air Bag And Safety Belt Pretensioner Supplemental Restraint System (SRS) Components
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 04338 | Passenger air bag cover |
| 2 | 13D730 | Passenger Air Bag Deactivation (PAD) indicator |
| 3 | 14B345 | First row, passenger, side impact sensor |
| 4 | 611D10 | Passenger side air bag module |
| 5 | 042D94 | Passenger side Safety Canopy® module |
| 6 | 14B345 | Second row, passenger, C-pillar side impact sensor |
| 7 | 043B13 | Driver air bag module |
| 8 | 042D95 | Driver side Safety Canopy® module |
| 9 | 14B345 | Second row, driver, C-pillar side impact sensor |
| 10 | 611D10 | Driver side air bag module |
| 11 | 14B345 | First row, driver, side impact sensor |
| 12 | 14B416 | Driver seat track position sensor |
| 13 | 61203 | Driver safety belt buckle (includes safety belt buckle switch) |
| 14 | 14A664 | Clockspring |
| 15 | 14B321 | Restraints Control Module (RCM) |
| 16 | 14B006 | Driver/center front impact severity sensor |
| 17 | 14B006 | Passenger front impact severity sensor |
| 18 | 61202 | Passenger safety belt buckle (includes safety belt buckle switch) |
| 19 | 14B422 | Occupant Classification System Module (OCSM) |
| 20 | - | Occupant Classification Sensor (OCS) weight sensor bolts (4 required) (2 shown in illustration) |
| 21 | 044A74 | Passenger air bag module assembly |
| 22 | 611B08 RH/611B08 LH | Driver safety belt retractor pretensioner |
