Special Tool(s)

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOLS DESCRIPTION CHART

Courtesy of FORD MOTOR CO.

Front Hub Remover
205-D070 (D93P-1175-B) or equivalent

NOTE: All-Wheel Drive (AWD) shown in illustration, Front Wheel Drive (FWD) similar.

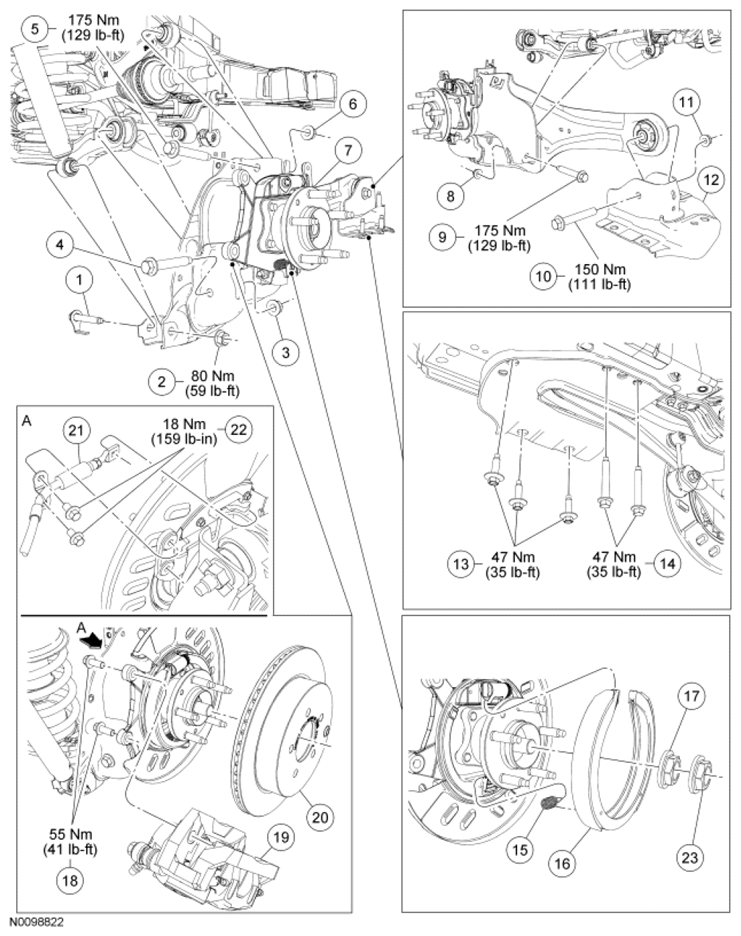

Fig 1: Exploded View Of Wheel Knuckle With Torque Specifications (AWD)

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	W712459	Shock absorber lower flag bolt
2	W520214	Shock absorber lower nut
3	W520215	Lower arm outboard nut
4	W500766	Lower arm outboard bolt
5	W500766	Upper arm outboard bolt
6	W520215	Upper arm outboard nut
7	5A995 LH/5A994 RH	Wheel knuckle
8	W520215	Toe link outboard nut
9	W500766	Toe link outboard bolt
10	W500568	Wheel knuckle bracket bolt
11	W520215	Wheel knuckle bracket nut
12	5A757 RH/5A758 LH	Wheel knuckle arm bracket
13	W713905	Wheel knuckle bracket-to-frame bolts (3 required)
14	W500724	Wheel knuckle bracket-to-frame bolts (2 required)
15	-	Parking brake spring
16	-	Parking brake shoe
17	W712435	Wheel hub nut (inner) All-Wheel Drive (AWD)
18	W711241	Brake anchor plate bolts (2 required)
19	-	Brake caliper and anchor plate assembly
20	2C203	Brake disc
21	2A635	Parking brake cable
22	W500021	Parking brake cable rear bracket bolts (2 required)
23	W712435	Wheel hub nut (outer) AWD
