AWD vehicles
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

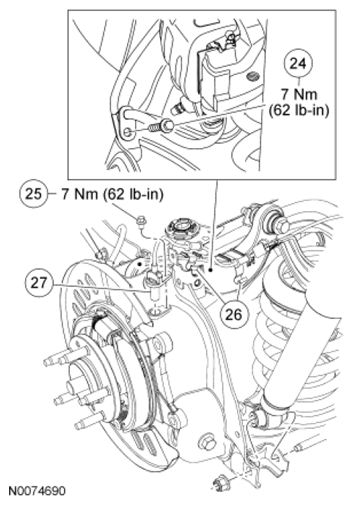

Courtesy of FORD MOTOR CO. PARTS DESCRIPTION CHART
| Item |
Part Number |
Description |
| 24 |
W500022 |
Brake flexible hose bracket bolt |
| 25 |
N807991 |
Wheel speed sensor bolt |
| 26 |
- |
Wheel speed sensor harness clips |
| 27 |
2C190 |
Wheel speed sensor |
