Front Wheel Drive (FWD) Vehicles
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

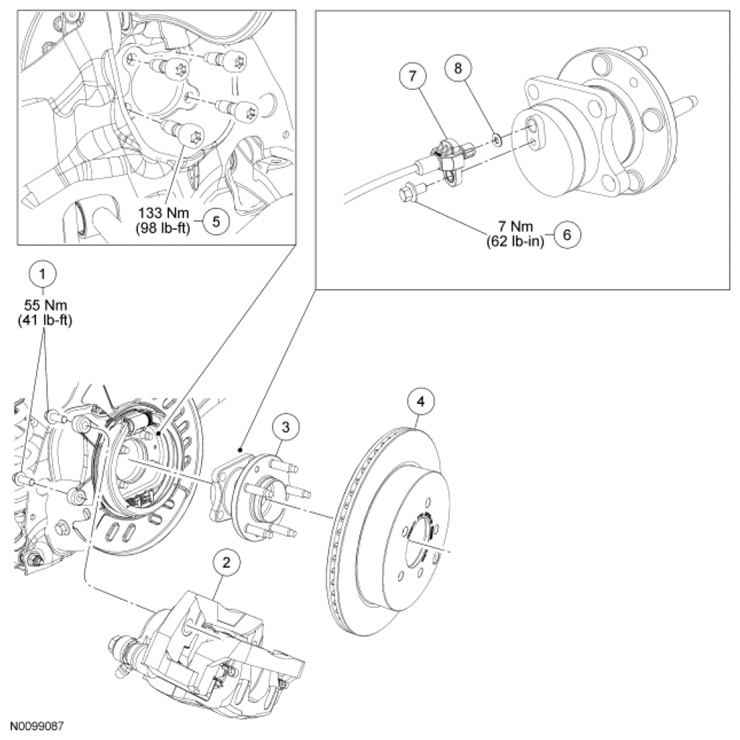

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W711240 | Brake caliper anchor plate bolts (2 required) |
| 2 | - | Brake caliper and anchor plate assembly |
| 3 | 2C299 | Wheel hub and bearing assembly |
| 4 | 2C203 | Brake disc |
| 5 | W712754 | Wheel bearing and wheel hub bolt (4 required) |
| 6 | W500222 | Wheel speed sensor bolt |
| 7 | 2C186 RH/2C187 LH | Wheel speed sensor |
| 8 | - | O-ring (part of 2C186 RH/2C187 LH) |
