Stabilizer Bar and Link: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

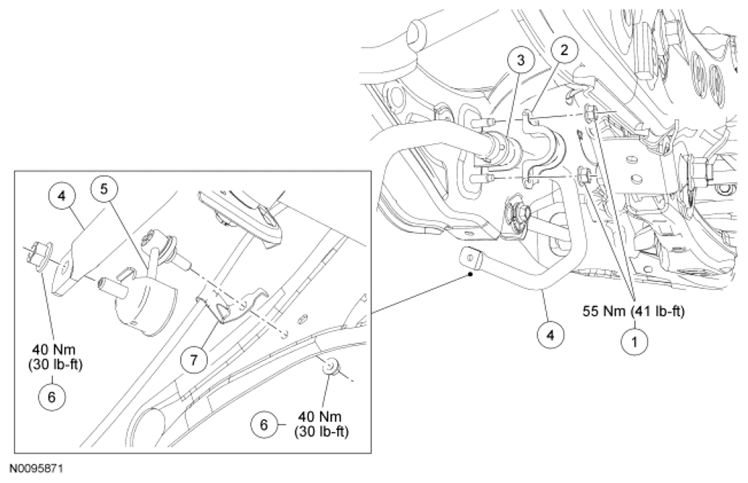

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W520414 | Stabilizer bar bracket nuts (4 required) |
| 2 | 5B493 | Stabilizer bar bracket (2 required) |
| 3 | - | Stabilizer bar bushing (part of 5B493) (2 required) |
| 4 | 5A772 | Stabilizer bar |
| 5 | 5A486 | Stabilizer bar link |
| 6 | W520414 | Stabilizer bar link nuts (4 required) |
| 7 | - | Parking brake cable (part of 2A635) |
