Special Tool(s)
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTION CHART
| Front Hub Remover 205-D070 (D93P-1175-B) or equivalent |
NOTE:
All-Wheel Drive (AWD) vehicle shown in illustration, Front Wheel Drive (FWD) vehicle similar.

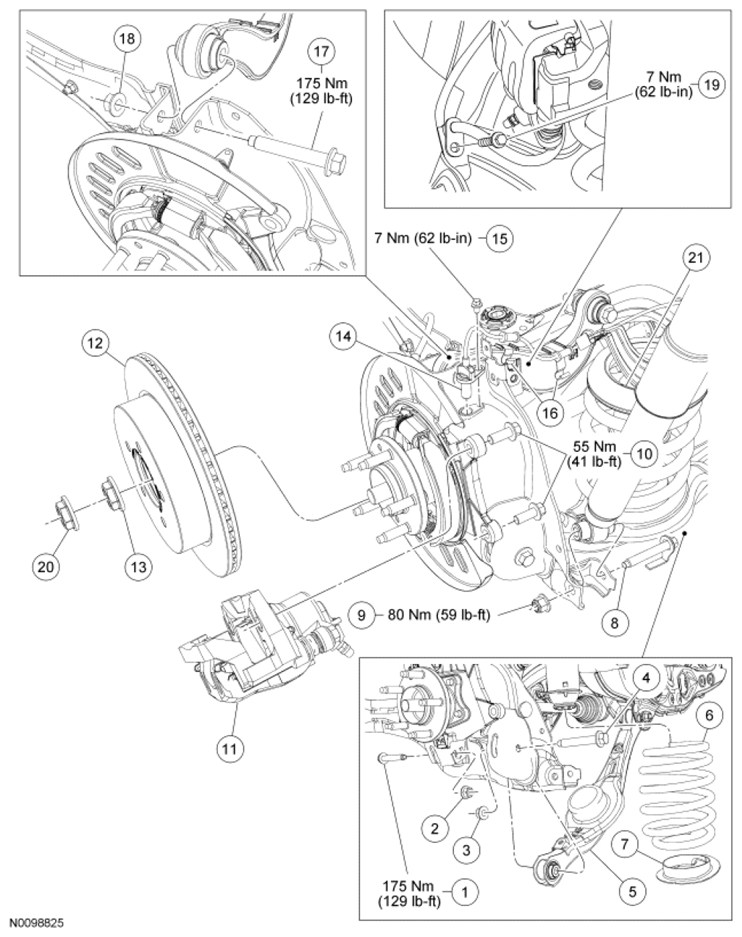

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W500766 | Toe link outboard bolt |
| 2 | W520215 | Toe link outboard nut |
| 3 | W520215 | Lower arm outboard nut |
| 4 | W500766 | Lower arm outboard bolt |
| 5 | 5A648 | Lower arm |
| 6 | 5560 | Spring |
| 7 | 5793 | Spring lower seat |
| 8 | W712459 | Shock absorber lower flag bolt |
| 9 | W520214 | Shock absorber lower nut |
| 10 | W711241 | Brake caliper anchor plate bolts (2 required) |
| 11 | - | Brake caliper and anchor plate assembly |
| 12 | 2C203 | Brake disc |
| 13 | W712435 | Wheel hub nut (inner) (All-Wheel Drive (AWD)) |
| 14 | 2C190 | Wheel speed sensor (AWD ) |
| 15 | W807991 | Wheel speed sensor bolt (AWD ) |
| 16 | - | Wheel speed sensor harness clips (2 required) (AWD ) |
| 17 | W500766 | Upper arm outboard bolt |
| 18 | W520215 | Upper arm outboard nut |
| 19 | - | Wheel speed sensor bolt (part of 2C190) (AWD ) |
| 20 | W712435 | Wheel hub nut (outer) (AWD ) |
| 21 | 5536 | Spring upper seat |
